GMHY-DP 600 Series Shaker screen

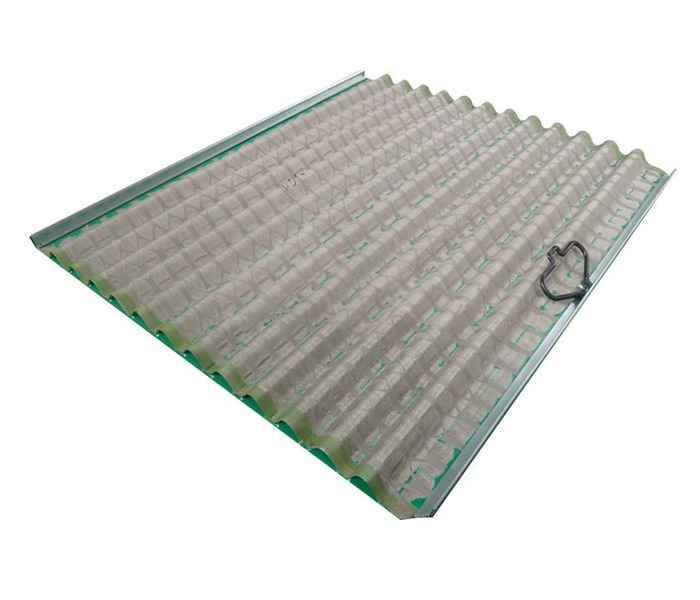

GM-600 Series PMD SHAKER SCREEN

Replacement Screens for Derrick DP 600 Series Shakers

Technical Parameter

Model No.: GM-DP 600

Size : 710x 626 mm

Material: stainless steel 304/316

Construction Type: PMD (pyramid).

Perforated Mesh Shape: rectangle.

API RP 13C Designation: API 120 – API 400.

Package: 2 pcs per carton, packed in wooden case.

Note: GuangMing only produces the replacement screens but not original from Derrick.

GM-PMD DP 600 shaker screen with dimension of 626 × 710 mm which is smaller than other screen panels, it is the replacement screen for Derrick Dual pool 600 series shale shakers. There are 6 or 8 panels needed for each DP 600 shaker. Innovative actuated screen compression system drives the center of the screen panel downward and firmly sealing the screen panel to the screen frame. The mud recovery is greatly improved.

Adaptable Shale Shaker Model

GM-PMD DP 600 shaker screens are used to as the substitute screen for:

?Derrick DP (Dual Pool) 626 shaker.

?Derrick DP (Dual Pool) 616 shaker.

?Derrick DP (Dual Pool) 628 shaker.

?Derrick DP (Dual Pool) 618 shaker.

?Derrick DP (Dual Pool) 626 VE (Vapor Extraction).

?Derrick DP (Dual Pool) 616 VE (Vapor Extraction).

?Derrick DP (Dual Pool) 628 VE (Vapor Extraction).

?Derrick DP (Dual Pool) 618 VE (Vapor Extraction).
