DNUO FRP GRP fiberglass sky light sheet making machine ZF

ID:22111590494

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 40000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

frp sheet making machinegrp sheet making machinefrp sheet production linegrp sheet production linefiberglass sheet machinefiberglass panel machinefibreglass sheet machinefiber sheet making machinefiber panel making machinefiber panel machine

Payment Method:

L/CT/T

Product Category
Manufacturing & Processing Machinery > Industrial Processing Machinery
Trademark
DNUO
Product Package
International standard
Specification
54m*1.85m*3.5m
Place of Origin
CHINA
Port
TIANJIN PORT

Basic parameter
operation staff
3-6 people
production speed
2-10m/min
sheet width
<1500mm
wave height
<140mm
sheet thickness
0.4mm-4mm
machine main dimension
54m*1.85m*3.5m ,according to customer requirement
power requirement
80kw
power consumption
running power consumption is 25kw/h
FRP GRP SKYLIGHTS PANEL MAKING MACHINE
This machine can produce transparent sheet,corrugated sheet,color sheet and flat sheet.
We also provide customers with customized services, equipment can be customized according to customer requirements.
1.Resin storage system
The storage tank placed the agitator motor, which can mix the resin with the filler and color paste to reduce the cost of the
production.
2.Metering system
1.Pulse-free metering system achieve the precise metering and permitted add powder fillers, that can reduce the cost of
production.
2.The pulse-free metering pumps can real-time control the dosage of raw material, for different raw material we applied different
pump. For example, for resin, we adopt the CAM rotor pump; for curing agent and accelerator we applied the plunger pump. The
practice proved these types of pump not only assure the quality of products, but also good operation.
3. PLC intelligent control system realized every metering pump automatic match the ratio, no need set the proportion one by one.
3.Heating oven
PID control temperature accurately, heating sectionalized, reduce power consumption under hot wind control, easily control curing
of sheet, attain 90% above, can replace mould needn't shut down machine
4.Impregnation system
multi-line independent temperature control, able to better adapt change of ambient temperature, quick impregnation, effectively
improve the speed of production.

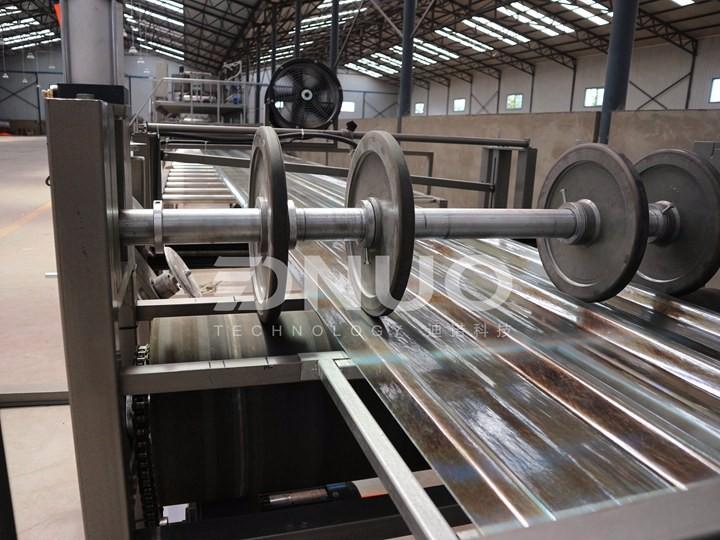

5.Sheet thickness control system
In this area have hard and soft sheet thickness rollers, can achieve precise control thickness of the sheet. These two rollers
have different function, if you add the filler to the production, you should use the soft roller. Because the hard roller can’t
allow the impurity pass through the film, easy to scratch the film.
6.Cooling and cutting system
1. we adopt the free waste edge cutting technology. It means in production we don't need cut the edge of the sheet. The advantages
is greatly saving the raw material and reducing the pollution. Meanwhile, expand the space of the workshop and reduce the personal
cost.
2. Special cross cutting machine can synchronize with production. Many factories can’t realize the synchronous production, because
their cutting machine is static, can’t moving with the sheet. So often met the problem of off tracking
3. in air-cooling zone, our high-power fan can rapidly cooling the sheet. If the aging process is not handled properly, there will
be many problems, such as secondary curing, foaming and yellowish.
7.Electrical power system
Touch screen PLC intelligent control, can automatically set the ratio of raw materials, length, width, thickness of the board, the system is equipped with English, Russian, Chinese three languages, the operation is more intelligent.
8.Wire and Cable
Particular parts adopt special purpose wire, durable in use. For example, in cutting system, because of high frequency of using of
cutting machine, the cable is often broken. Now we apply integrated folding cable to increase the using life.

Qinhuangdao Dinuo Technology Development Co. Ltd.

         Qinhuangdao Dinuo Technology Development Co. Ltd. is professional manufacturer of FRP sheet production line. We are the first domestic production of FRP sheet making machine and biggest-selling company. We own advanced technology and more than 20 years’ experience. We have passed ISO9001 certification.

         The main products are FRP lighting sheet production line, FRP gel coat sheet production line, FRP embossed sheet production line, FRP decorative sheet production line, FRP gutter production line and Refrigerated truck body panel making machine etc. With professional technology and high quality service, Dinuo has occupied about 80% domestic market with obvious advantage. The product has been exported to the United States, Russia, Chile, Brazil, Saudi Arabia, Thailand, Bangladesh, Jordan, India, Indonesia, Vietnam, Malaysia, Azerbaijan etc.
The company will participate in the global exhibition every year, in order to better promote our products. Such as France exhibition, Brazil exhibition, Russia exhibition, Mexico exhibition, Australia exhibition and so on

Packaging and Delivery

* Large cargo should be fixed

* Small pieces are packed in iron cases

* Shipping by sea, land or railway can be used according to customer requirements

  • Delivery 30-60 days after receipt of deposit, depending on the type of equipment

Our engineers have more than 20 years of production experience, we provide our customers with equipment installation, commissioning, training workers and regular technical update, more 24 hours anytime and anywhere for your service, your satisfaction is the power of our progress
