Business Type: Manufacturer
Main Products:wire mesh fencewire meshdecorative fence panellaser cut screenfarm fence
ID:22112490944
Category: Construction & Decoration Building Structural Material
MOQ:1.00 Piece(s)
field fence farm fence hinge joint fence wire mesh
L/CT/TD/PWestern UnionPaypalMoney Gram
The following are some specifications that we often export,for you reference only,if you have special requirements,we can do as your customized,we will have professional designers to provide you with the most satisfactory style.

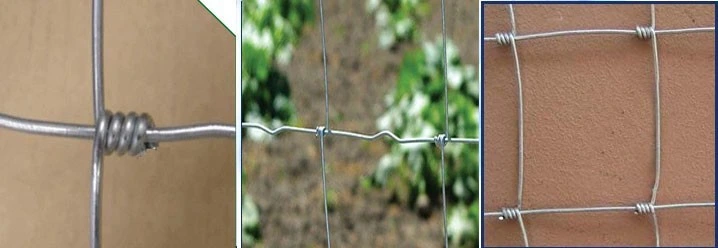

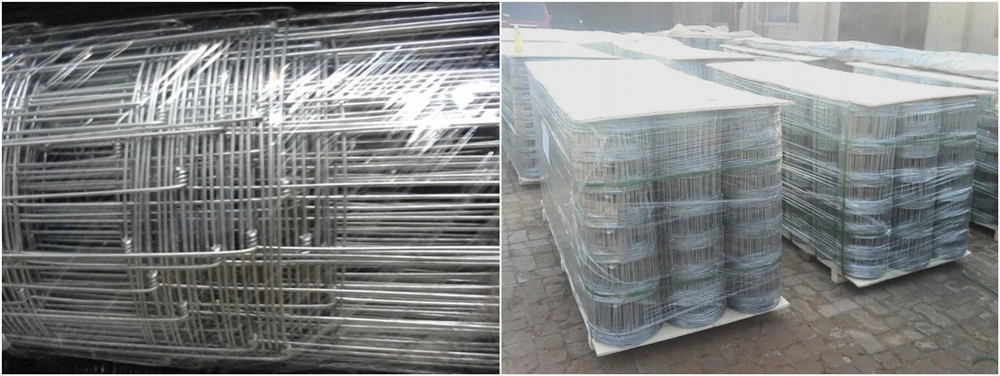

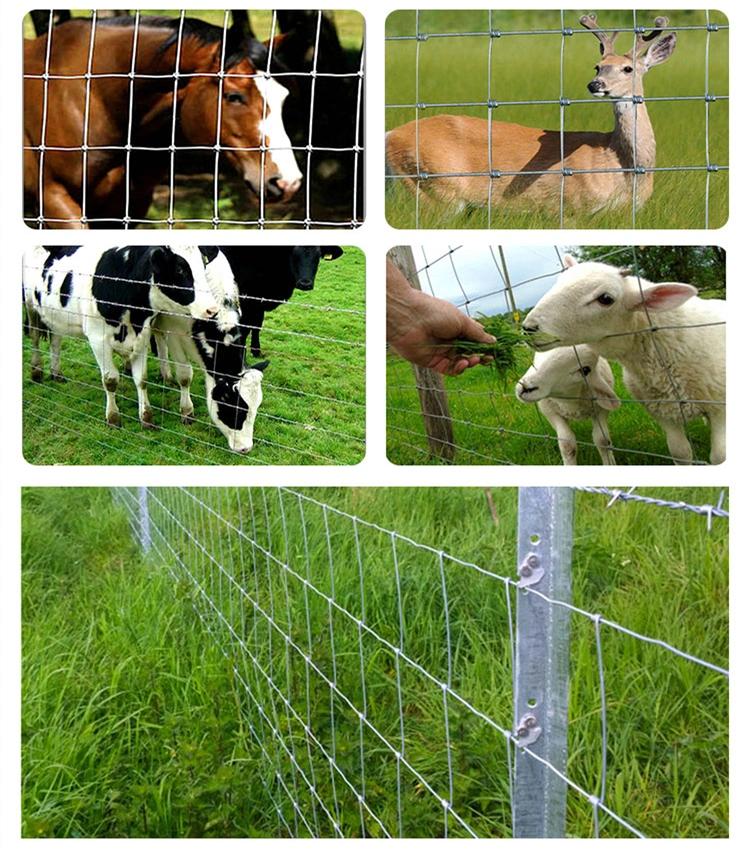

Galvanized Kraal Network/Galvanized field fence | |
Material | High tensile galvanized steel wire High carbon Hot-dip galvanized wire Low carbon Hot-dip galvanized wire Low carbon Electric galvanized wire PVC coated wire |
Wire diameter | 1.5mm, 1.6mm, 1.7mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm |
Top & Bottom wire diameter | 2.0mm, 2.2mm, 2.5mm, 2.7mm, 3.0mm, 3.5mm, 4.0mm |
Vertical spacing | 150mm/6 Inch, 300mm /12 Inch |
No. of Horizontal wire | 7 - 23 |
Height | 0.8m, 0.9m, 1.0m, 1.2m, 1.4m, 1.5m, etc. |
Length | 50m/165ft , 100m/330ft |
Roll diameter | 200mm - 270mm |
Zinc coating | 20g/m2-330g/m2 |
| Tenshion strength | 400-1300N |
No. | Item | Specification | The top and bottom wires diameter | The middle wires diameter | Roll diameter |
1. | 7/150/813/50 | 102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
2. | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 2.5 | 2.0 | 280 |
3. | 8/150/902/50 | 89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
4. | 8/150/1016/50 | 102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 |
5. | 8/150/1143/50 | 114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
6. | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
7. | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
8. | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 |
9. | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
10. | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
Note: we can also produce the mesh according to the customers special requirements. | |||||
Y Post | |
Market | Australia/New Zealand/ South America/Mid east |
Surafce Treatment | Hot dipped galvanized/ Painting |
Packing | 10pcs/bundle, 200pcs/pallet |
Size | 1.58kg/m , 1.86kg/m , 1.90kg/m , 2.04kg/m |
Popular Length | 0.45m | 0.60m | 0.90m | 1.35m | 1.50m | 1.65m | 1.80m | 2.10m | 2.40m |
Holes New Zealand type | 7 | 7 | 7 | 8 | |||||
South America Type | 5 | 9 |

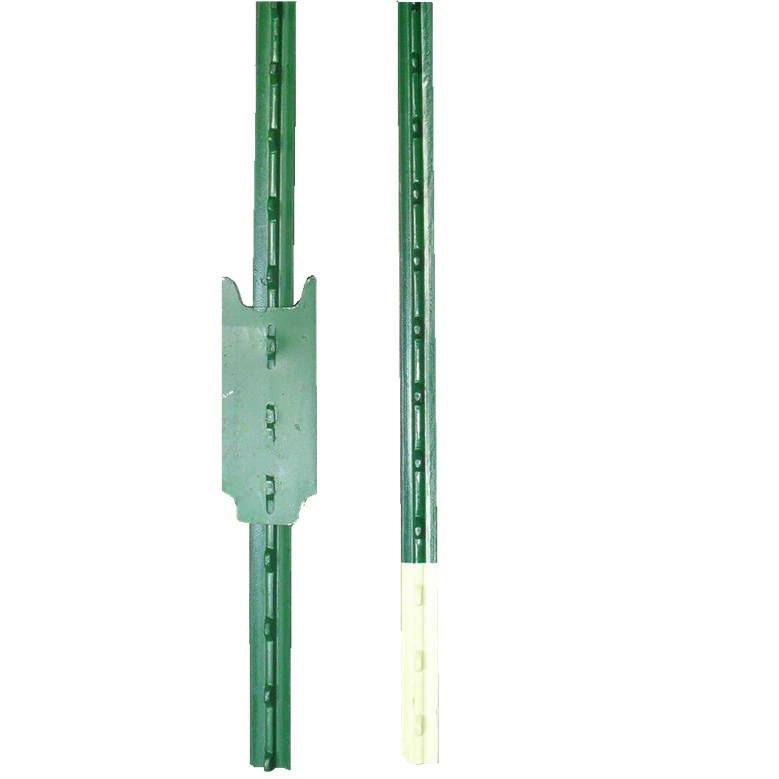

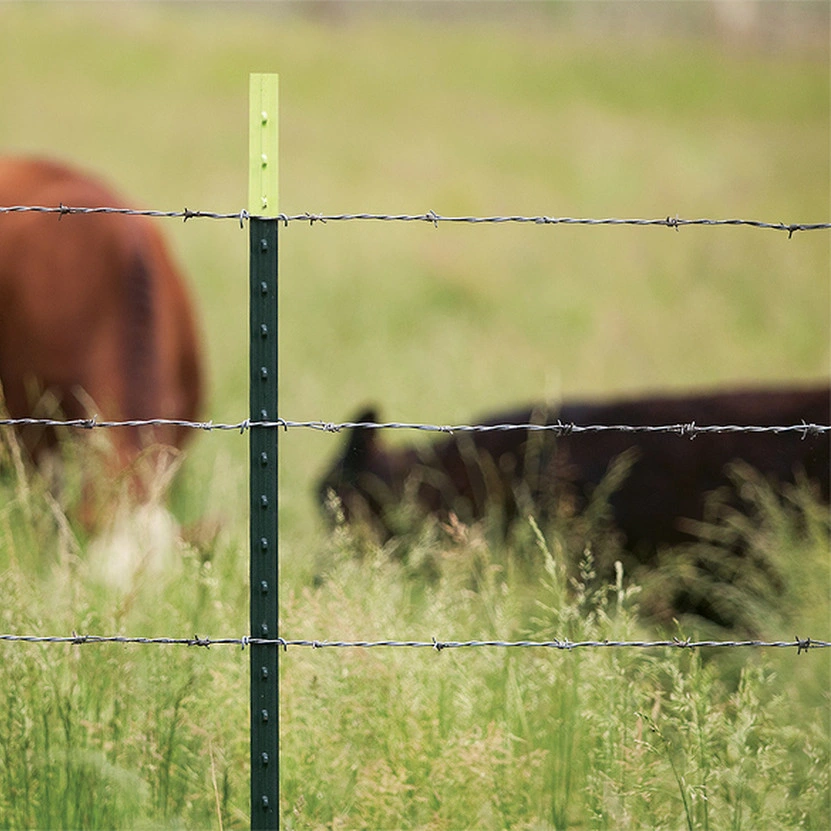

T post | ||||
Market | Eruope and north America | |||
Surafce Treatment | Hot dipped galvanized/ Painting | |||
Packing | Eruope and north America | |||
Size | 0.95pounds/foot, 1.25pounds/foot, 1.33pounds/foot ,1.5pounds/foot | |||
