Product Description

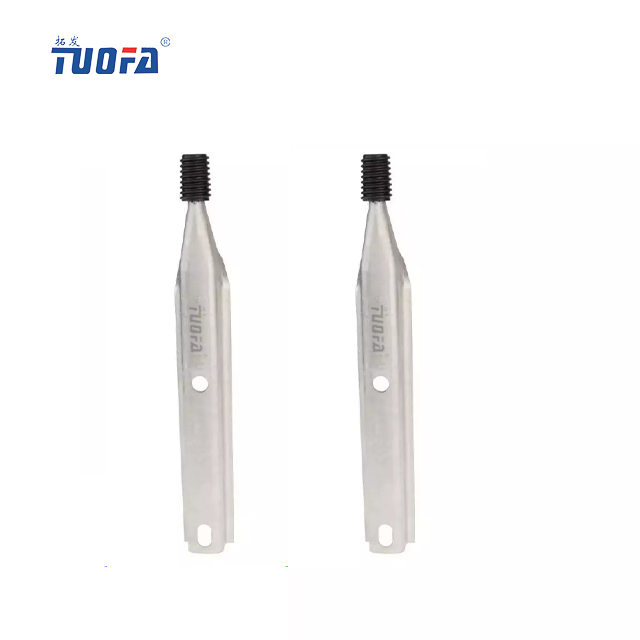

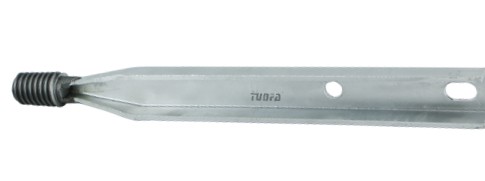

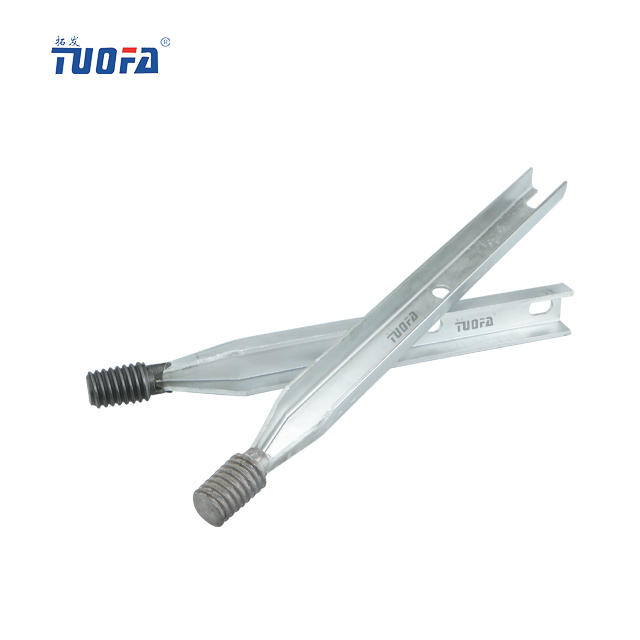

U Type Steel Channel/pole Top Pin/insulator Spindle.
The pole top pin slotted channel sections are mounted against the pole by 5/8-inch bolts. The design of the pole top pin is to allow easy removal for replacement of insulator units or fittings without the necessity to remove the insulator string from the cross arms.TUOFA pole top pin has the length of 18’’ and 20’’, with 1’’or 1-3/8’’ lead thread. The straight base design has two mounting holes on the base.
Lead threads are made from a lead alloy of a grade and quality suitable to meet the strength and performance requirements of the ISO1461 standard. TUOFA pole top pin meet the strength minimum load of 680kg in transverse, and 540kg in longitudinal.
The pole top pin is made from hot new rolled steel. The steel will heat to red and punched to the designed shape. The finish of the pole top pin is hot dip galvanized which is reasonably smooth and free of burrs or other sharp projections.
Specification
Insulator tanger head post 18'',thread 1'',lead head(F25)(JEC-EA001)
Specification Perticulaors
Length (inch) | Diameter of Thread(inch) | Dimension(inch) H S | Front Width (inch) | Wide face od rod (inch) | Height of rod (inch) | Length of Screw Head (inch) | Neck of Pin (inch) | Width of Neck (inch) | No. of holes | Weigh approx (Lbs) | |
| 18 | 1 | 9 | 8 | 2 | 2.45 | 1.50 | 1.75 | 5-1/8 | 2 | 2 | 2.92 |
20''POST POINT COIL,1-3/8''THREAD LEAD HEAD (F26) JEC-EP001
Specification Perticulaors
Length (inch) | Diameter of Thread(inch) | Dimension(inch) H S | Front Width (inch) | Wide face od rod (inch) | Height of rod (inch) | Length of Screw Head (inch) | Neck of Pin (inch) | Width of Neck (inch) | No. of holes | Weigh approx (Lbs) | |
| 20 | 1-3/8'' | 11 | 8 | 2 | 2.45 | 1.50 | 2.13 | 5-1/8 | 2 | 2 | 3.77 |
Why Choose Us
1.Competitive price
2.Fast Delivery
3.Free sample provided
4.Long time warranty
5.Reliable quality,OEM service available
6.Professional product and technical support
7.Prompt answer for any quetion and inquiry
