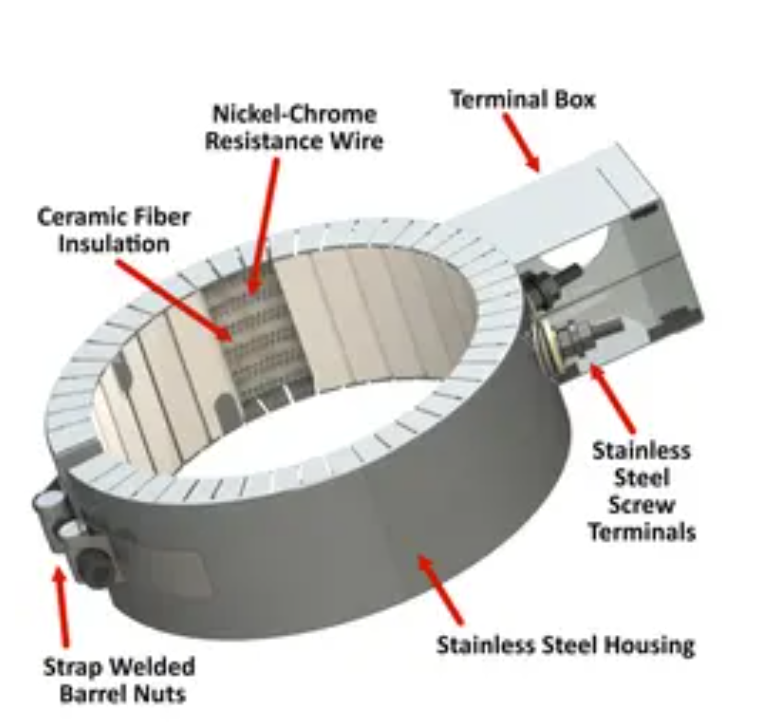

Ceramic heating ring for plastic extruders and injection machines
Product Name | Ceramic Band Heater |
Heating Elements (coil) | Cr20Ni80 |
Sheath Material | Stainless Steel cover for ceramic band heater |
Insulators | High Grade Steatite Ceramic Insulators |
Power Rating | Depending upon application |
Gap Between the Clamping Edge | 5 - 10mm |
Voltage Range | 110V - 440V, Single, Three Phase |
Surface Loading | 35-55W / inch2 (depending upon model & application) |
Power Tolerance | +5% to -10% |
Insulation Resistance (Cold) | < 20 MΩ |
Sheath Temperature | Up to 500°C maximum (Chrome Nickel Steel sheath) |
Width and Inner Diameter | Customizable |
Connection Method | Metal box ;Screw post terminals; High Temperature Plug;High temperature cable;Ceramic block |
Nominal Wall Thickness | Premium Heat : ?" Power Saver : ?" + 5/8" (Outer Insulation) Power Saver PLUS :?" + 1.5" ( Outer Insulation) |
Lead Wire Terminals | 1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving 2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap 4.PTFE insulated wire 5.Fiberglass insulation wire |
Accept OEM&ODM customization services | |
