wafer type butterfly valvebutterfly valve
L/CT/T
Features and benefits:
? Wafer pattern design, for quick installation.
? Wider EPDM seat design, replaceable, its suit for different type of flanges.
? Streamlined SS304 disc, lower water head lost.
? ISO top flange as standard, easy to suit acuators.
? Bi-directional shut-off seat.
? Eccentric pin on stem, not destroy structure of the stem, insure the strongth.
? BFV2: Gearbox operation: DN50~DN600.
Applicable Standards:
Design standard: EN 593, BS 5155
Connection standard: suit for EN1092-2
Face to face standard: EN 558-1 basic series 20
Top flange standard: ISO5211/1
Technical Data:
Size: DN50～DN600(2″～24″)
Nominal pressure: PN 16
Temperature range: -10～90℃
Suitable for: Water and neutral liquids
| Dimensions: | ||||||||
| BFV2 Butterfly Valve - unit: mm | ||||||||
| Item | Inch | DN | L1 | H1 | H2 | D1 | D2 | KG |
| 1 | 2″ | 50 | 43 | 74 | 124 | 125 | 99 | 3 |
| 2 | 21/2″ | 65 | 46 | 74 | 134 | 145 | 118 | 3 |
| 3 | 3″ | 80 | 46 | 89 | 141 | 160 | 132 | 4 |
| 4 | 4″ | 100 | 52 | 110 | 156 | 180 | 156 | 5 |
| 5 | 5″ | 125 | 56 | 130 | 175 | 210 | 184 | 7 |
| 6 | 6″ | 150 | 56 | 146 | 186 | 240 | 211 | 9 |
| 7 | 8″ | 200 | 60 | 175 | 218 | 295 | 266 | 25 |
| 8 | 10″ | 250 | 68 | 220 | 270 | 355 | 319 | 30 |
| 9 | 12″ | 300 | 78 | 250 | 300 | 410 | 370 | 41 |
| 10 | 14″ | 350 | 78 | 259 | 368 | 470 | 429 | 48.00 |
| 11 | 16″ | 400 | 102 | 309 | 400 | 525 | 480 | 58.00 |
| 12 | 18″ | 450 | 114 | 327 | 422 | 585 | 548 | 92.00 |
| 13 | 20″ | 500 | 127 | 361 | 480 | 650 | 609 | 155.00 |
| 14 | 24″ | 600 | 154 | 459 | 562 | 770 | 720 | 260.00 |

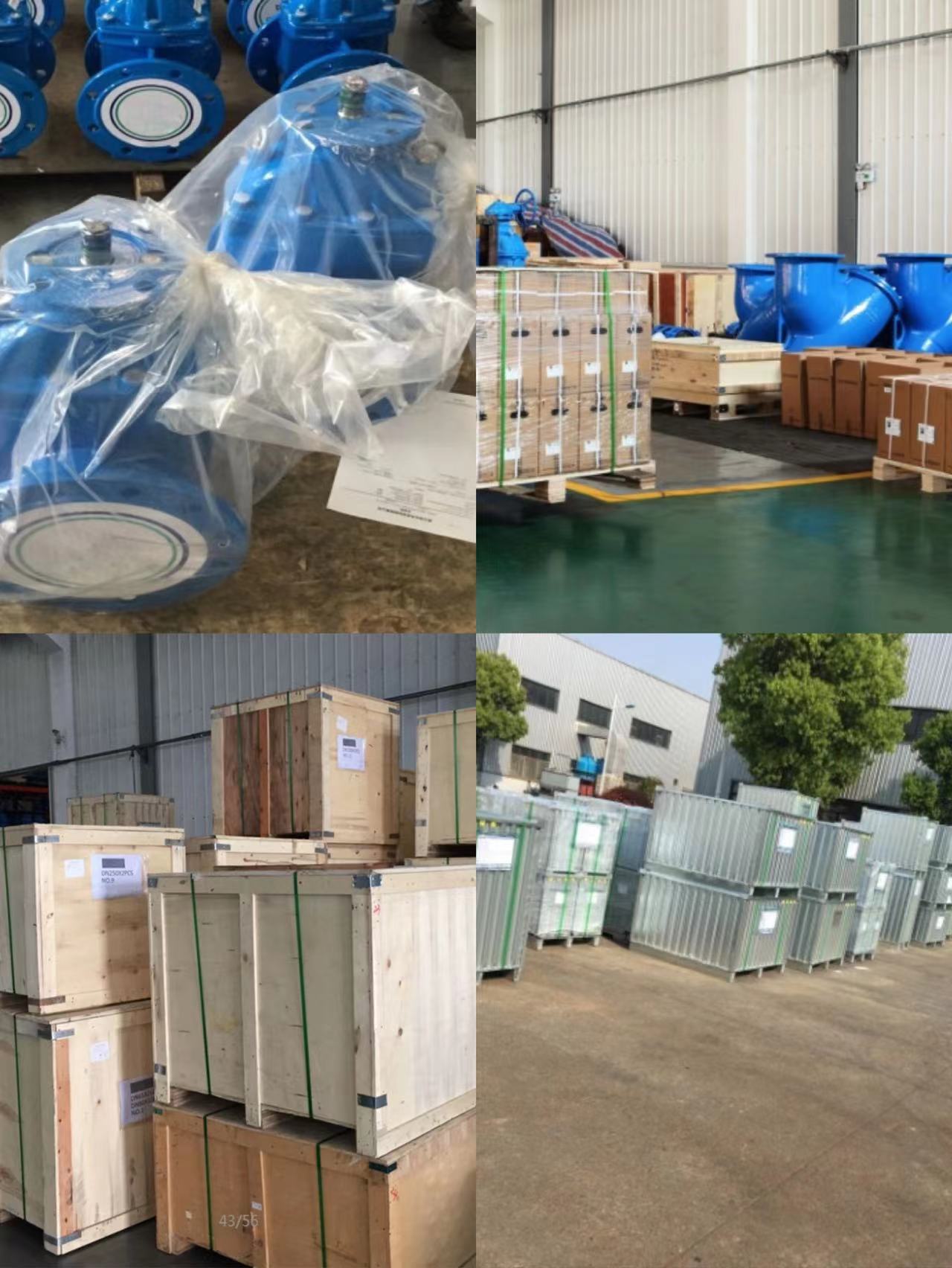

Packing and Shipping
About Us:
1. More than 10 years experience for valves, fittings, etc..
1. Professional R&D teams in Germany & China for HAVC and waterworks system.
2. Strict products inspection, SOP processing.
3. 6S management, higher quality material with higher price.
4. Quick feedback service, feedback within 24 hours.
5. All sales have more than 10 years experience on service.

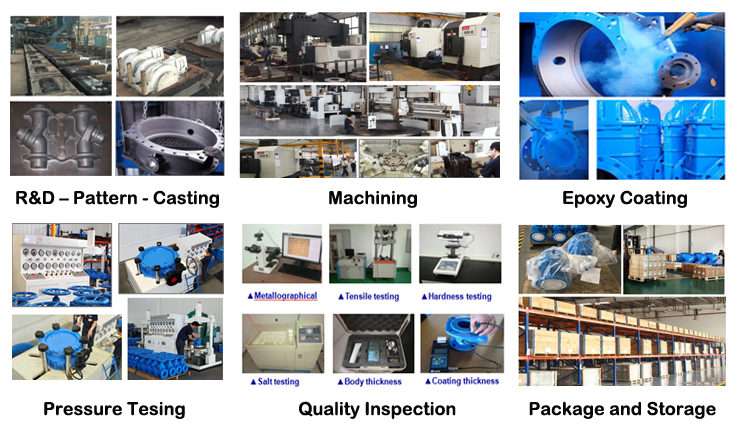

Factory Capacity
Welcome visit us
FAQ:
Question 1: Can you make OEM or ODM product?
DVK: Yes, if QTY attractive enough, we can create new mould for you, make bodies casting with your logo and your nameplate; if QTY not attractive enough, will be only with your nameplates or labels.
Question 2: How long is your delivery time?
DVK: General speaking, we have some stock for regular products, it is 1~2 weeks if the goods are in stock; if not in stock will be 4~8 weeks, depends on quantity.
Question 3: Do you provide free samples?
DVK: If samples available in stock, yes, we could offer the free sample to you, but the air cost or courier cost will be on your account.
Question 4: What are your payment terms?
DVK: Order value less than 2000USD, 100% in advance. Order value more than 2000USD, 30% T/T in advance,balance before shipment. L/C available as well.
