mechanical sector animal handheld portable veterinary ultrasound machine WJ-MSU2-V

ID:24122094386

Category: Medical & Health & Beauty Medical Devices

FOB Price:US$ 1150.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

veterinary ultrasound machineportable veterinary ultrasoundultrasound vet black and whiteultrasound vetanimal ultrasound machineveterinary/animal ultrasoundportable ultrasound scannerultrasound machine veterinary

Payment Method:

L/CT/TD/PWestern UnionPaypalMoney GramOthers

Product Category

Medical & Health & Beauty > Medical Devices

Trademark

OEM

Product Package

carton box

Specification

WJ-MSU2-V

Place of Origin

China

Port

Tianjin xingang

Products Description

Product name	Full digital Mechanical Sector ultrasonic diagnostic instrument
Target customer	Breeder, farmer (not veterinary). They mainly see pregnancy, low budget.
Technical	Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
Body mark	1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.
Display mode	B、2B、4B 、B/M、M, total 5 kinds.
Magnification	0.8、1.0、1.2、1.6、2.0, total five kinds
Character brightness	choose from 160、192、224、255 for brightness.
Dual-mode TV output	ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
Image storage	Permanent image storage: 100 frames. USB port support one-key storage image to USB.
Power	Dual power supply. AC110/230 -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz.

Feature:1. Economic price. 2. 1.1kg weight, Smart and light. 3. Have soft rubber coat, splash-proof, dust-proof. 4. sunshine cover, suitable for use in outdoor strong sunshine. 5. High-capacity lithium Battery ,more than 6 hours work. 6. Available for left/right hand alternative use, eliminating operate fatigue.Measurement and analysis:1. General measurement：distance、Perimeter, area (trace method, ellipse method), volume, etc. 2. Cardiac measurement: depth, slope, heart rate, time. 3. OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama. 4. OB report functionStandard configuration：1. Main unit: 1 pc 2. 3.5MHz waterproof mechanical sector probe : 1 pc. 3. Power adapter: 1 pc 4. Internal battery : 1 pc 5. The leather Case: 1 unit 6. Green soft rubber coat: 1 pc 7. Sunshine cover : 1 unit (A,B,C three sections adjustable) 8. Black plastic suitcase : 1 pc 9. Base Charger, belt, probe socket spatula: 1 pc for each.

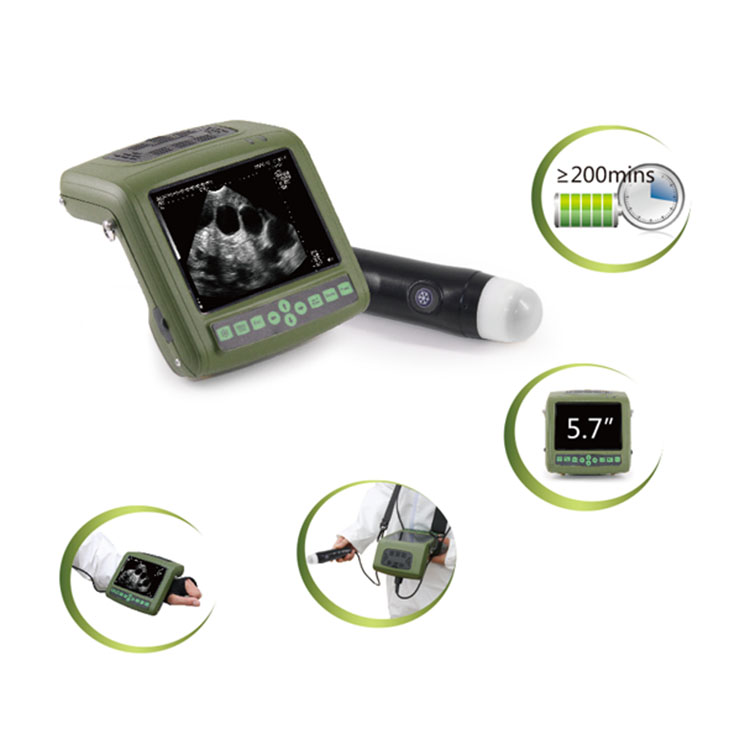

vet ultrasound MSU1PLUS_6.JPG
