Product Introduction
Features
Many Products&Derivatives
How it works
BLUEWAV chlor-alkali diaphragm electrolysis and high-concentration sodium hypochlorite synthesis complete system is aimed at small-scale chlor-alkali chemical industry and industries that require high-concentration sodium hypochlorite solution.
The system has many derivatives, the main products are chlorine and sodium hydroxide, which can be derived to produce HCl, NaOH, NaClO, NaClO2, NaClO3 and other basic chemicals and pharmaceutical intermediates.
BLUEWAV M-CHLOR provides a safe, efficient and reliable system that enables manufacturers, distributors and consumers of chlorine-containing disinfectants and household chemicals to cost-effectively produce high quality do-it-yourself sodium hypochlorite (bleach), or chemicals such as hydrochloric acid and caustic soda for their own internal use on site, or for distribution and sale.

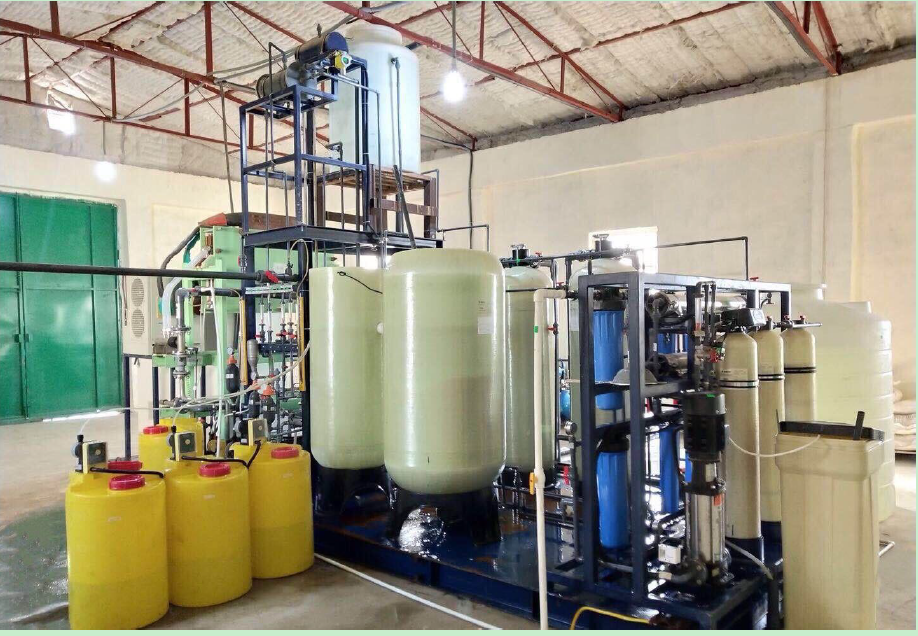

System composition
Saturated brine electrolysis complete system | Hydrochloric acid electrolysis complete system |
Tap water purification system | |
Saturated brine refining module (primary and secondary refining) | Hydrochloric acid storage and recovery |
Anolyte circulation | |
M-CHLOR Chlor-Alkali Film Series Diaphragm electrolysis module | M-CHLOR Hydrochloric Acid Membrane Series Diaphragm electrolysis module |
Rectifier transformer | Rectifier transformer |
Catholyte circulation | |
Comprehensive chemical dosing | |
HYPO-ACT series sodium hypochlorite synthesis module | |
Dechlorination and brine recovery module | Control System |
Control System | |
Power distribution system | Power distribution system |
Optional configuration: chlorine liquefaction, sodium hydroxide purification, caustic soda preparation, etc.
MODEL&SPECIFICATION
| Model | Chlorine (kg/h) | NaCLO Qty 10%(kg/h) | Salt consumption(kg/h) | DC consumption(kw.h) | Area occupy (㎡) | Weight(t) |
| BWL-C500 | 0.5 | 5 | 0.9 | 1.15 | 5 | 0.5 |
| BWL-C1000 | 1 | 10 | 1.8 | 2.3 | 5 | 0.8 |
| BWL-C5000 | 5 | 50 | 9 | 11.5 | 100 | 5 |
| BWL-C7500 | 7.5 | 75 | 13.5 | 17.25 | 200 | 6 |
| BWL-C10000 | 10 | 100 | 18 | 23 | 200 | 8 |
| BWL-C15000 | 15 | 150 | 27 | 34.5 | 200 | 10 |
| BWL-C20000 | 20 | 200 | 36 | 46 | 350 | 12 |
| BWL-C30000 | 30 | 300 | 54 | 69 | 500 | 15 |
NOTE:Making special design for those capacity are over 30kg/hr.
Application areas:
Chlor-alkali | Chlorine, sodium hydroxide, sodium hypochlorite preparation |
Daily chemical | Household bleach and other related preparations |
Electricity | Circulating water treatment |
Medicine | Pharmaceutical intermediates |
Municipal | Water purification plant |
Sewage treatment plant |
