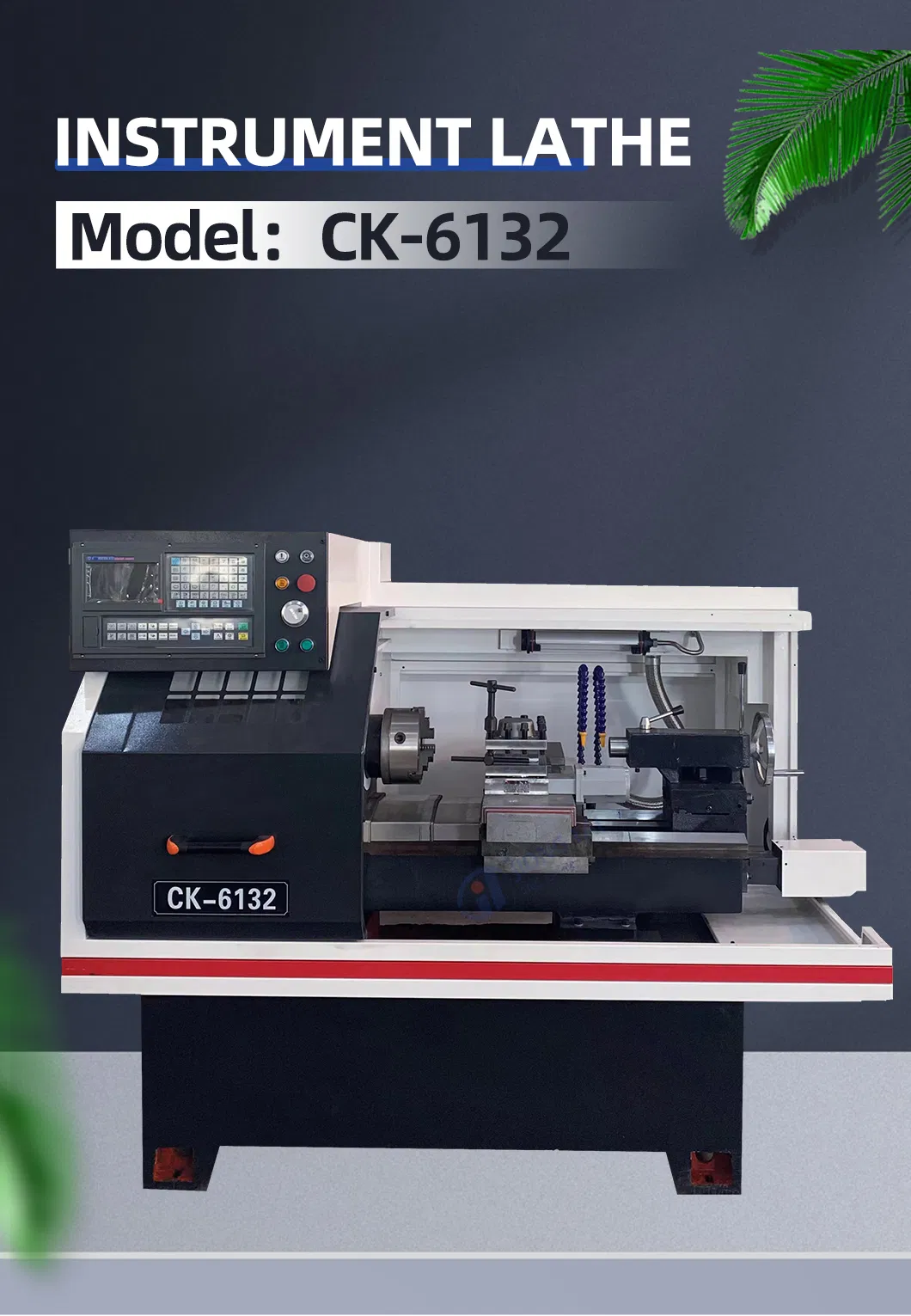

High Precision and Efficiency Ck6132 Instrument CNC Lathe

ID:26101395921

Manufacturing & Processing Machinery Machine Tools

FOB Price:US$ 5,500.00-6,300.00 / Piece(MOQ)

MOQ:1 Piece(MOQ)

Product Keywords:

High Precision and Efficiency Ck6132 Instrument CNC Lathe CNC CNC Lathe

Payment Method:

Product Category
Manufacturing & Processing Machinery > Machine Tools
Trademark
JT
Product Package
Seaworthy Packing
Specification
1900*1300*1600
Place of Origin
China
Port

Product Description

High Precision and Efficiency Ck6132 Instrument CNC LatheHigh Precision and Efficiency Ck6132 Instrument CNC LatheHigh Precision and Efficiency Ck6132 Instrument CNC LatheHigh Precision and Efficiency Ck6132 Instrument CNC LatheHigh Precision and Efficiency Ck6132 Instrument CNC Lathe





The CK6132 digital control lathe has several significant advantages compared to traditional CNC lathes:

  1. High Precision: The CK6132 digital control lathe employs more precise measurement and control technologies, enabling higher machining accuracy and stability. Real-time measurement of the workpiece and tool positions allows for timely compensation, reducing machining errors and enhancing precision.

  2. High Efficiency: During machining, the CK6132 lathe can monitor the status of workpieces and tools in real-time, adjusting machining parameters accordingly to effectively improve machining efficiency. Precise control of the machining process also reduces debugging and scrap rates, thereby increasing overall production efficiency.

  3. High Automation Level: Integrated with advanced sensors and automatic control systems, the CK6132 lathe achieves a higher degree of automated machining. Operators typically only need to set machining programs and monitor the process, significantly lowering skill requirements and reducing errors caused by human factors.

  4. Strong Adaptability: The CK6132 lathe can accommodate complex machining requirements and diverse types of workpieces. Flexible programming and adjustments enable quick adaptation to different machining tasks, reducing setup and changeover times and improving equipment utilization.

  5. Data-driven Management: The CK6132 lathe allows for recording and analysis of machining data, facilitating optimization and management of the production process. Through data analysis, potential issues can be identified and addressed, further enhancing production efficiency and quality.

Overall, the CK6132 digital control lathe offers clear advantages over traditional CNC lathes in terms of precision, efficiency, automation, adaptability, and data-driven management. It is a key equipment widely applied in modern manufacturing industries.

Product Parameters

ITEM PARAMETERS

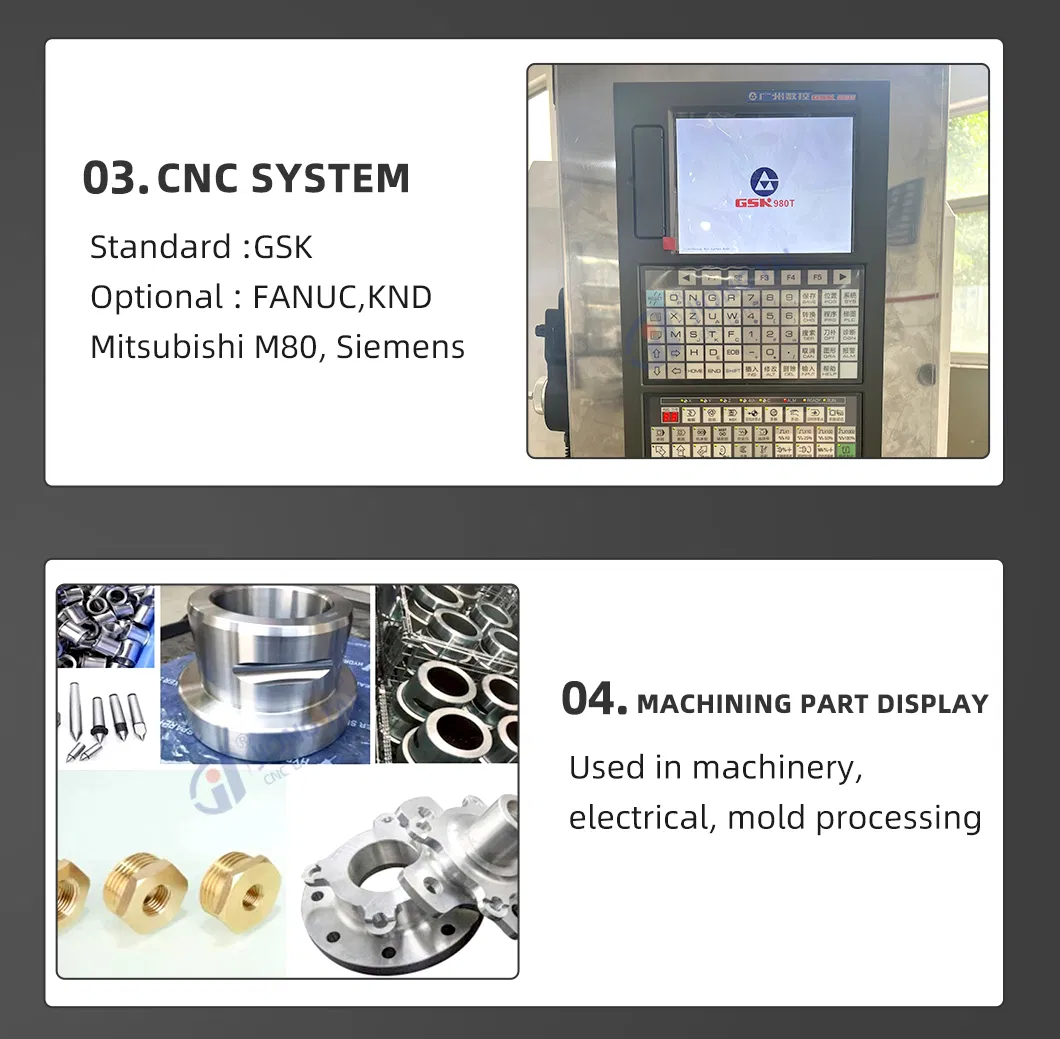

CNC system GSK
Swing over bed 300mm
Max. rotation diameter of the support plate 180mm
X-axis Max. strok 600mm
Z-axis Max. strok 550mm
X-axis rapid traverse speed 8000mm/min
Z-axis rapid traverse speed 8000mm/min
Spindle through-hole 48mm
Spindle head specifications/taper A2-5/21°
Main motor power 4/5.5kw
Spindle speed 3000rpm
Tool holder form Four-position tool turret
Tool handle specification 20*20mm

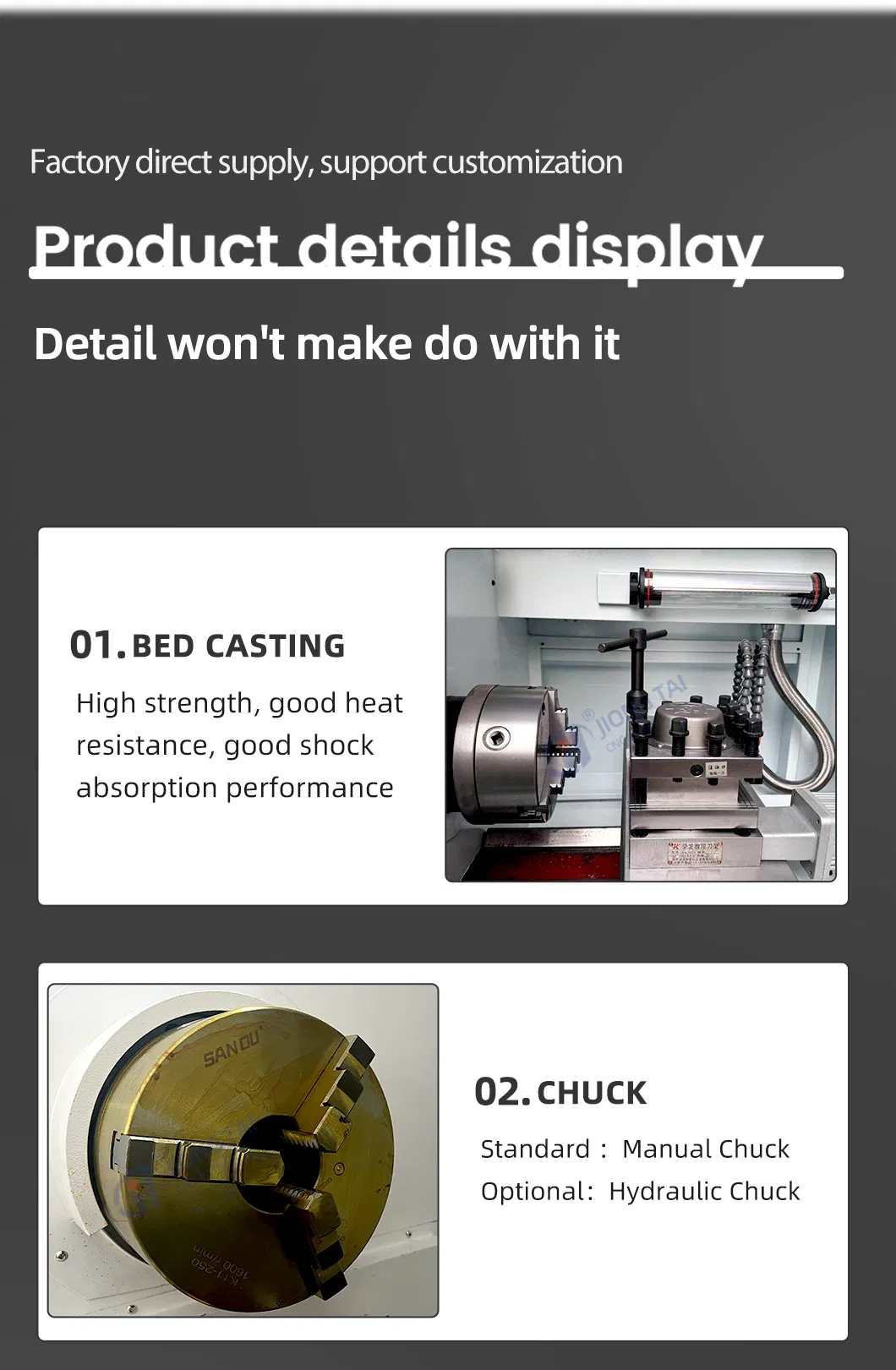

Quasi compact mode Pneumatic clamping/Three-claw chuck
X-directiong motor torque 4 Nm
Z-directiong motor torque 4 Nm
X/Z motor connection method Direct connection
X-axis lead screw specification 2506
Z-axis lead screw specification 4006
Tailstock center cone hole MT-4
Repetitive positioning accuracy  0.01mm
Positioning accuracy 0.02mm
Cooling water pump power 120w

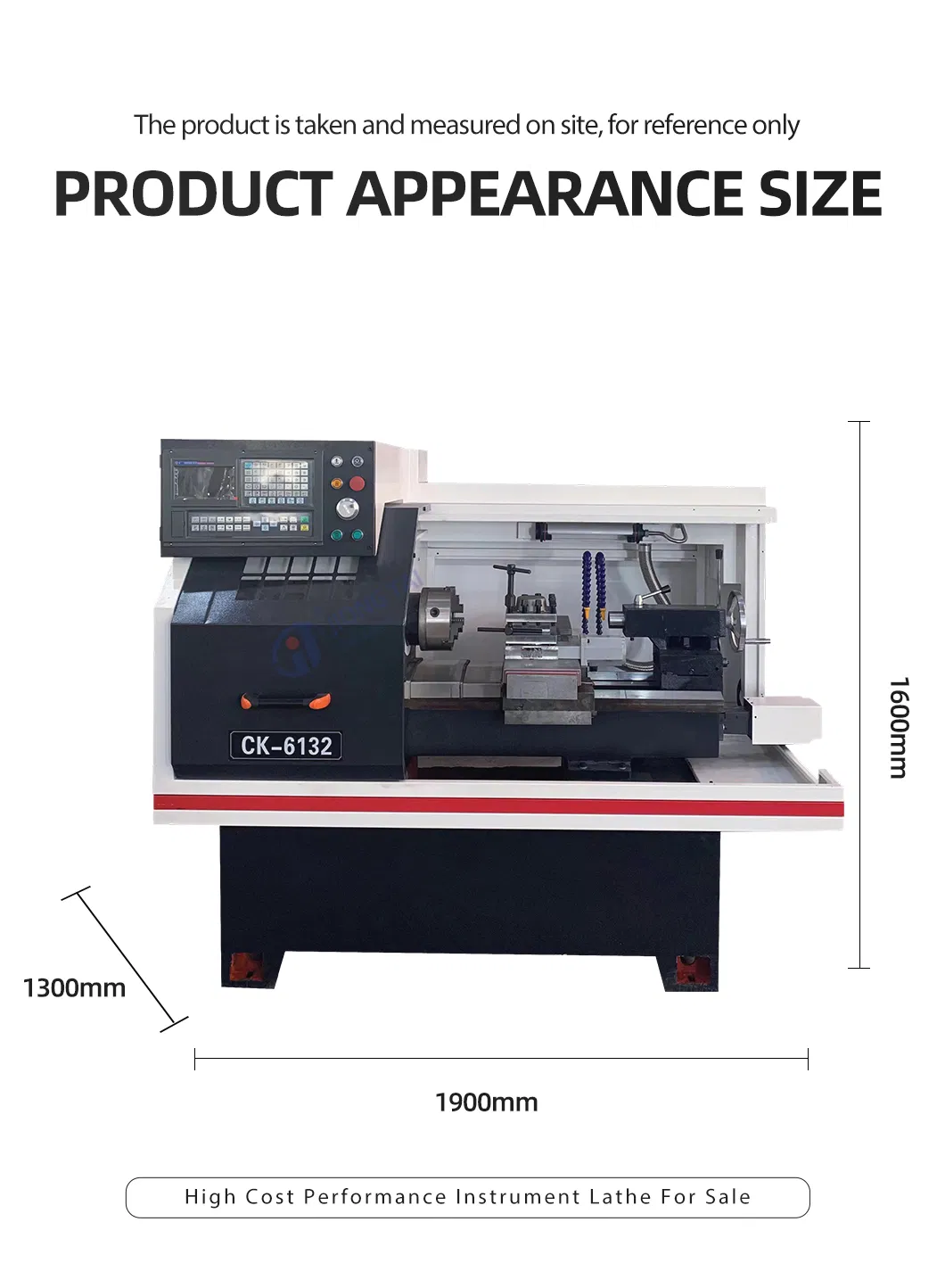

External dimensions of machine tools 1900*1300*1600mm
Net weight of machine tool 1200kg

High Precision and Efficiency Ck6132 Instrument CNC LatheHigh Precision and Efficiency Ck6132 Instrument CNC Lathe
