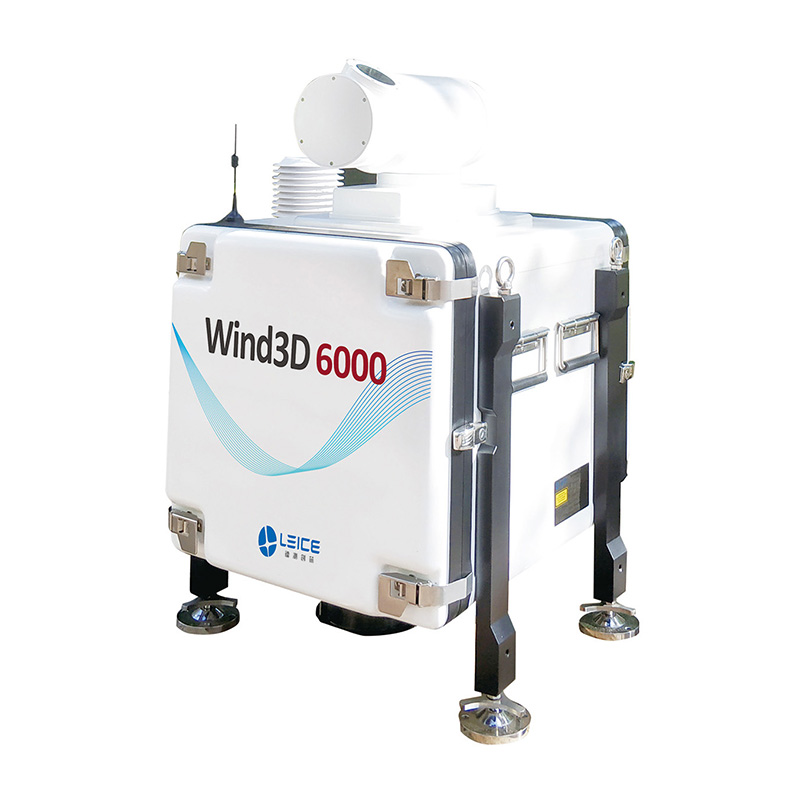

Wind3D 6000 3D Scanning Doppler Wind Lidar

Tools,Hardware & Instruments Measuring Instruments

FOB Price:US$ 600,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T D/P

Keywords:doppler wind lidar wind energy wind measurement meteorology weather  climate aviation  environmental monitoring civil defence monitoring equipment

Add to Favorites

Product Category: Tools,Hardware & Instruments > Measuring Instruments Trademark: Leice
Product Package: aviation transport box Specifications: 6km detection range
Place of Origin: China Port: Qingdao

Product Description

Based on the principle of optical pulse coherent Doppler shift detection, Wind3D 6000 can realize the fine detection of the 3D wind field of the middle and lower troposphere (including the atmospheric boundary layer).

Highly pointed precision optical scanning mirror for 3D scanning detection.

(DBS/VAD/PPI/RHI/CAPPI fixed-point scanning mode), the detection radius can be up to 6km.

In order to meet complex wind measurement requirements such as complex terrain wind field, wind turbine wake,remote virtual wind tower at sea, and stereoscopic distribution of atmospheric pollutants, we have specially developed radar 3D stereo scanning, virtual wind tower, multi-radar coordination, etc. Detection mode. Provide users with a full range of customized solutions and services.

Functional features and advantages

3D wind field detection: long distance, 3D stereo wind field detection system

High precision: achieved wind cup-level wind measurement accuracy (<0.1m/s), and passed IEC61400-12-1:2017 international standard inspection

Large range: detection radius >6km (expandable)

Multi-scan mode: DBS/VAD/RHI/PPI/CAPPI virtual wind tower, etc. , and support for Lidar script programming.

High resolution: data refresh rate : 10Hz distance resolution :15m

Flexible deployment: small size, light weight, low power consumption, and easy to build and transfer in the field

Automatic unattended observation: remote networked data acquisition and device monitoring

Strong robustness: continuous and stable operation in harsh environments on land and at sea

Technical specifications

SpecificationsParameter
Wavelength1.5μm,Eye-safe
Radial detection range45m~6000m
Radial range resolution15m/30m/configurable
Data updating rate1Hz~10Hz(configurable)
Radial wind speed range-37.5m/s~37.5m/s
Radial Wind speed accuracy≤0.1m/s
Scanning servo accuracy

±0.1°

Detection modesDBS/ VAD/ PPI/ RHI/ VOL/ fixed point / CAPPI/ virtual tower stare (VTS)/ Glide Path Scan (GPScan) / multi-lidar measurement
Data productDBS/ VAD Wind profile, vertical flow, RHI/PPI/ CAPPI radial velocity, virtual tower stare (VTS),turbulence wake, wake vortex, wind shear, backscatter intensity, multi-lidar measurement, GNSS position, lidar status, temperature, humidity, pressure
Weight<90kg


Contact Name: Mr. Jennifer Tan Contact Email: je****r@leice-lidar.com
Contact Job Title: Sales And Marketing Contact Mob: 139***284
Contact Tel: +86-532-80922894 Contact Fax: +86-532-80922894
Address: 8F/ Building D2,Qingdao International Innovation Park Phase II, Keyuanwei 1st Road #1, Laoshan District, Qingdao City, Shandong Province, China 266100 Website: https://www.leice-lidar.com

Founded by the lidar research team of Ocean University of China and academician Wenqing Liu of Institute of optics, Chinese Academy of Sciences, Qingdao Leice Transient Technology Co.,Ltd focuses on the R & D, manufacturing and technical services of atmospheric and marine remote sensing lidar. Leice provides high-performance and high reliability lidar products, integration and total solution for meteorological observation, environmental monitoring, smart wind power, aviation and military industry. The company is a national high-tech enterprise, with quality system ISO9001 certified, with products certified by SGS, WindGuard, DNV_ GL  and other international authorities. The technical achievements won the first prize of Qingdao technology invention, and awarded the 5th National Honor of the 7th China Innovation and Entrepreneurship Competition. Leice team has successfully developed and finalized various type of wind lidars, for different applications in aviation meteorology, environmental meteorology, smart wind power, national defense and military etc. The products have been successfully applied for meteorological support in Olympic Games 2008, in Shenzhou VII capsule recovery, 70th Anniversary Celebration of National Day in 2019, and in the lidar network project of dust monitoring along “The Belt and Road”. Leice’s wind lidar has passed the comparative verification test with the traditional wind cups from Shenzhen met tower, organized by the meteorological center of China Meteorological Administration. Leice’s lidar also has passed the comparative verification test with theodolite for wind measurement, conducted by troops. Significantly, Leice’s lidar has been certified by the international authorities such as WindGuard, DNV_GL, and China General Certification, compliant to the IEC61400 standards with measurement accuracy up to that of Class 1 anemometer.
