low resistance high transmittance 10ohm ito pet film for emi shielding

ID:20092322418

Category: Print,Pack,Plastic Printing Materials & Services

FOB Price:US$ 120.000 / Square Meter(s)

MOQ:50.00 Square Meter(s)

Product Keywords:

low resistance conductive filmoptical flexible filmito pet filmemi shielding filmrfid anti radiation film

Payment Method:

T/TWestern UnionPaypal

Product Category

Print,Pack,Plastic > Printing Materials & Services

Trademark

Product Package

Specification

Place of Origin

Port

Shenzhen

ITO (Indium Tin Oxide),

PET=Polyester film (polyethylene terephthalate).

A wide range of optically clear ITO COATED PET FILM or ITO PET FILM is offered by PRCHEMA.ITO coated PET film is Indium Tin Oxide coating onto a transparent PET film to make the surface conductive but still transparent.

ITO PET FILM products have many uses, for example, as components of touch screens and other position sensors, electroluminescent (EL) lamps, liquid crystal devices, EMI shielding, electrophoretic displays, smart windows and transparent heaters.

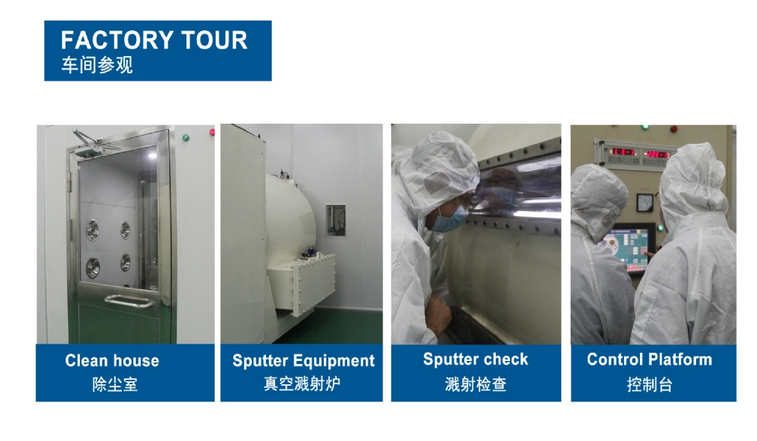

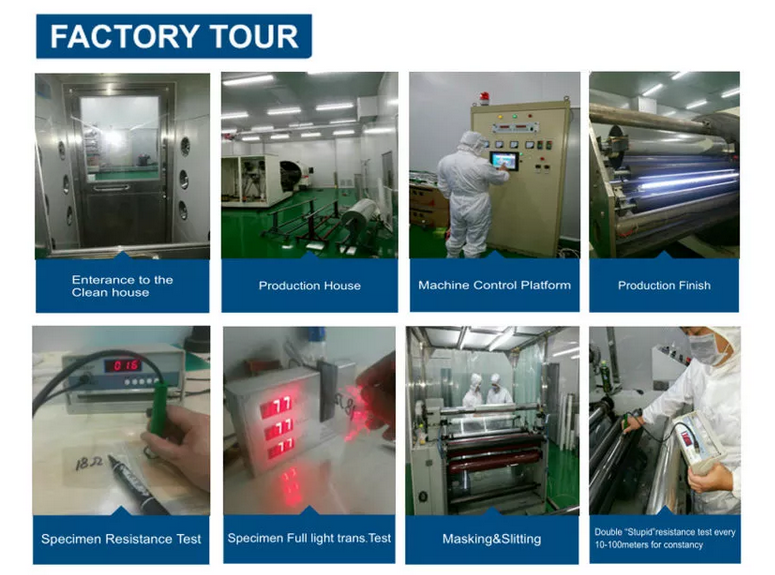

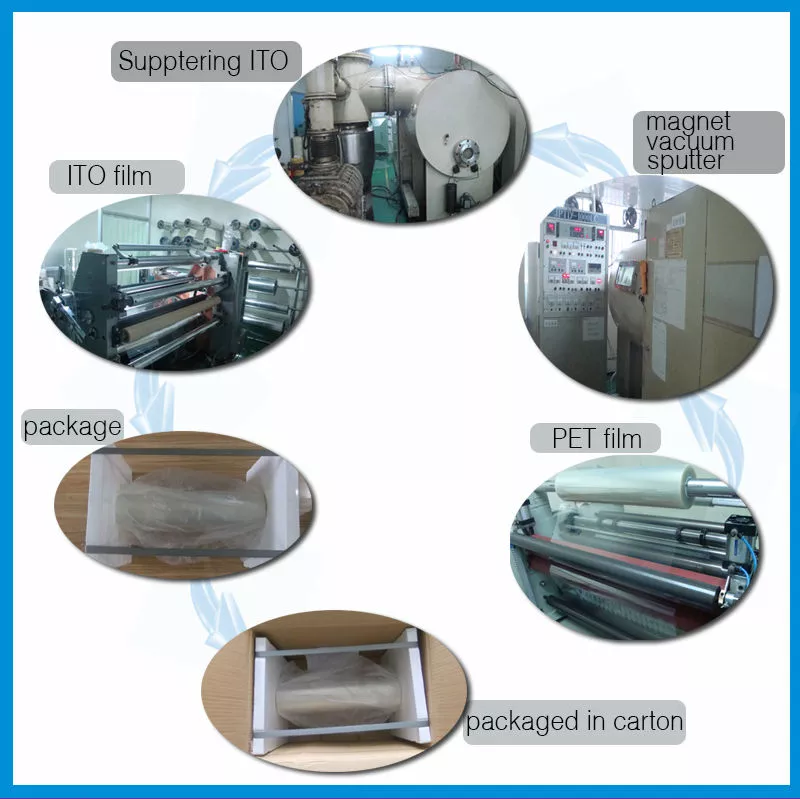

PROCHEMA ITO PET FILM products are produced by vacuum sputter deposition of ITO, a process that affords excellent coating uniformity and adhesion.

All standard ITO PET FILM products, which are listed below, are produced on optical grade polyester film.

Model	Resistance	Thickness	Width	Transmittance	Application
PROC-10	10+/-2ohm/sq	0.125/0.175mm	1200mm	>75%	EMI shielding


Electrical Uniformity

All ITO PET FILM products feature electrical uniformity of 10% within any one square foot area, defined as the maximum difference from the average ohms per square value within that area. However, touch screen manufacturers typically achieve

Handling ITO PET Film

Vacuum deposited ITO coatings are very thin and are easily scratched or cracked if handled improperly. When removing film from a roll, care should be taken not to bend or crease it. It is important never to allow the ITO coated side to come in contact with a surface, such as a table, during processing operations. Sliding ITO coating over a surface will scratch the coating, resulting in elevated surface resistance and visible defects. Please note that all ITO PET FILM product supplied in sheet form is supplied with protective liner on all surfaces.

Ordering ITO PET FILM Products

PROCHEMA sells ITO PET FILM products in roll form of 250m x 1220mm (cut to 610mm/305mm width ). When ordering rolls of film, please correctly specify the film thickness (microns, mils or gauge units), film width, length of film on each roll and number of rolls desired. Rolls are supplied on 6 inch or 3 inch cores depends on your requirements.

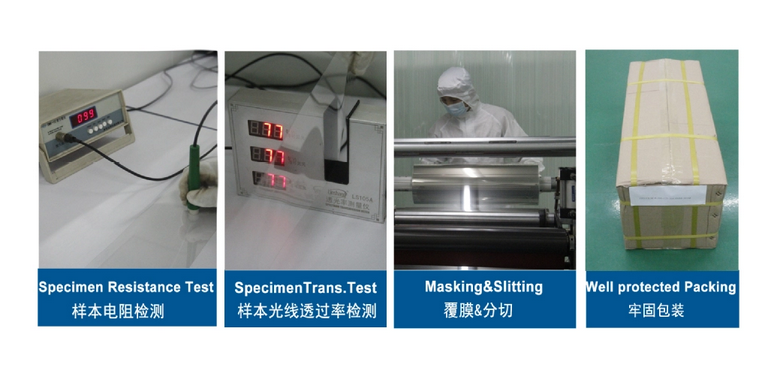

Packaging & Shipping

1, Two bulkheads on both ends .
2, Plastic foam coverd on bulkheads for protecitve ITO Film
3, ITO film on tube core suspending for protection
4, ITO Film coverd with PE protective film
5, ITO Film packed with plastic foam
6. Bulkheads on both ends make ITO Film suspending
7, Packed with carton
8, Labelling for shipping

Our Services

Flexible Service For ITO Film

A. Flexible for order quantity :

No matter how small or how big the order or client is, we do with our heart.

Customized ito film specifications are also available.

B. Flexible Payment term:

T/T in advance, Western Union,Paypal

C.Flexible Trade term:

ITO Film Cooperation Based On EXW/FOB

D.Flexible Shipping Methord for ITO PET Film

We can get discount quotation from reliable shipping agent, to help you save the shipping cost and time.
