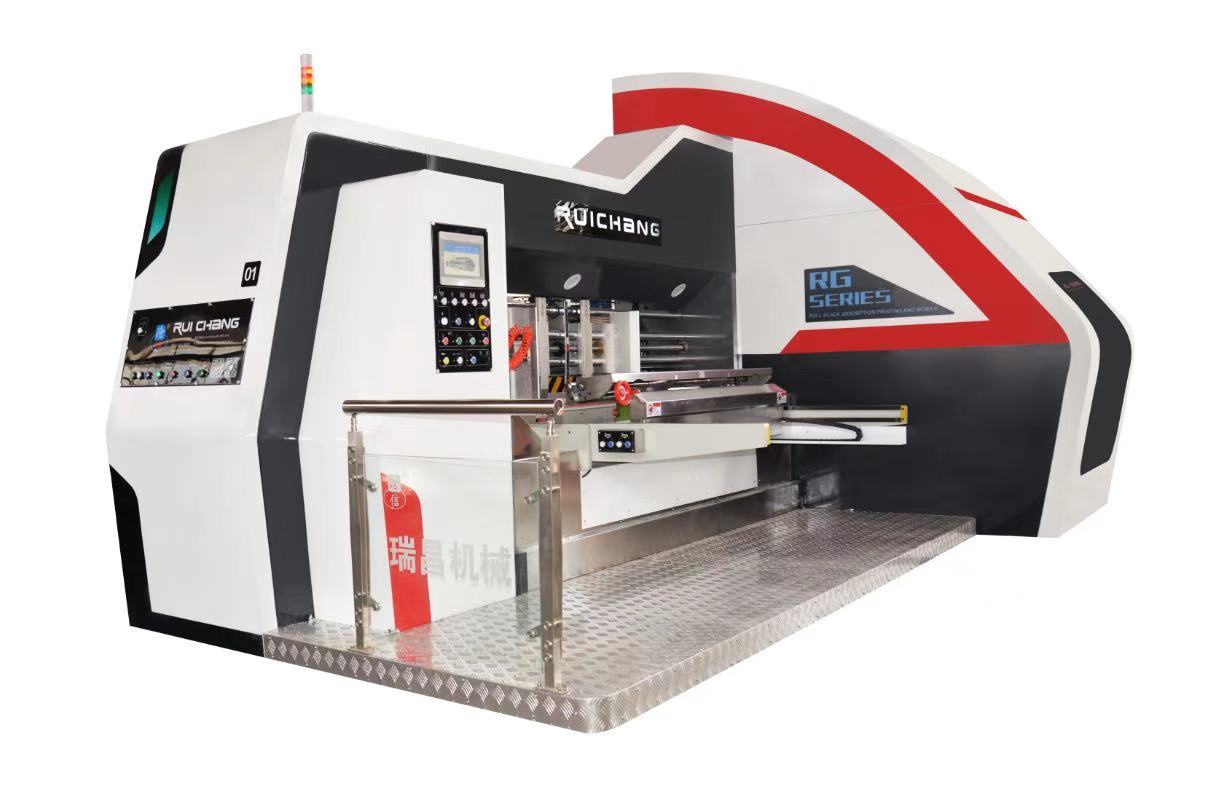

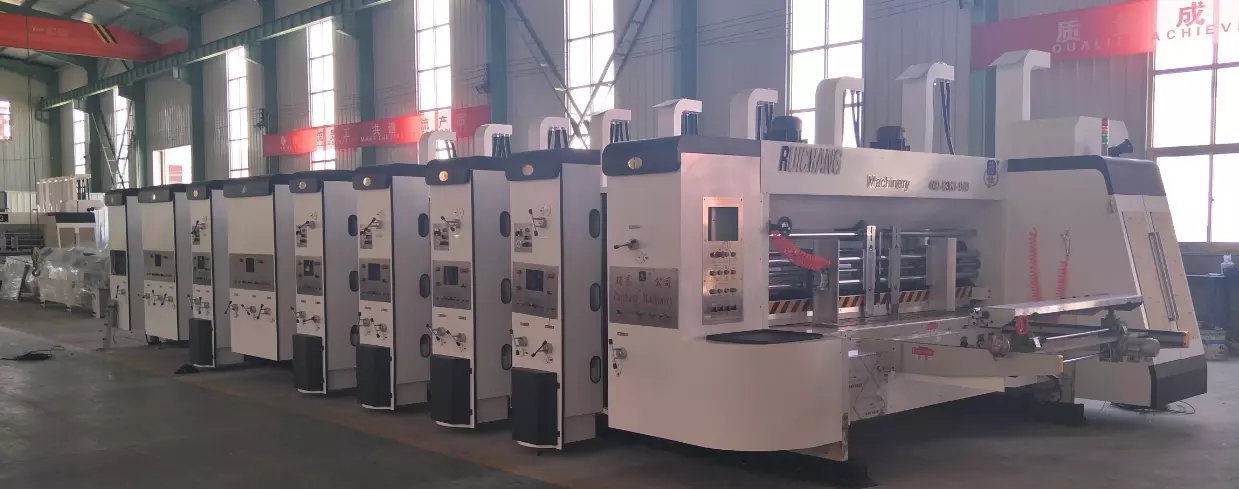

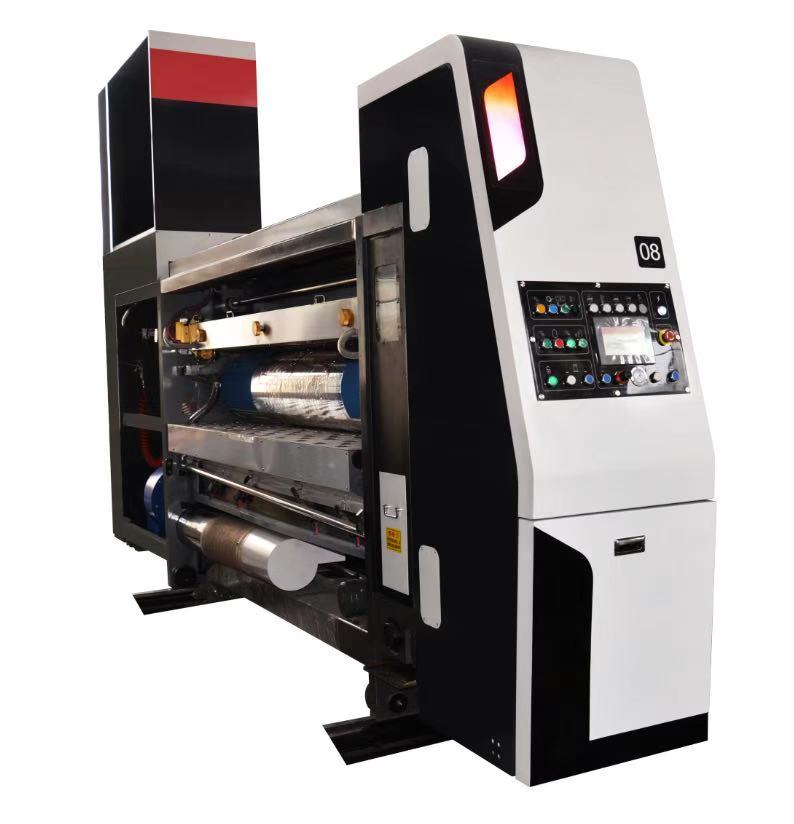

ruichang full servo vacumm carton box flexo printing slotter and die cutting machine

Machine details

Feeding unit:

Delta inverter and PLC ,touch screen operation .

Schneider contactor/ electric

Gear adopt 20CrMnTi material with grinding technology with thickness 60mm

Feeding stroke can be adjusted.

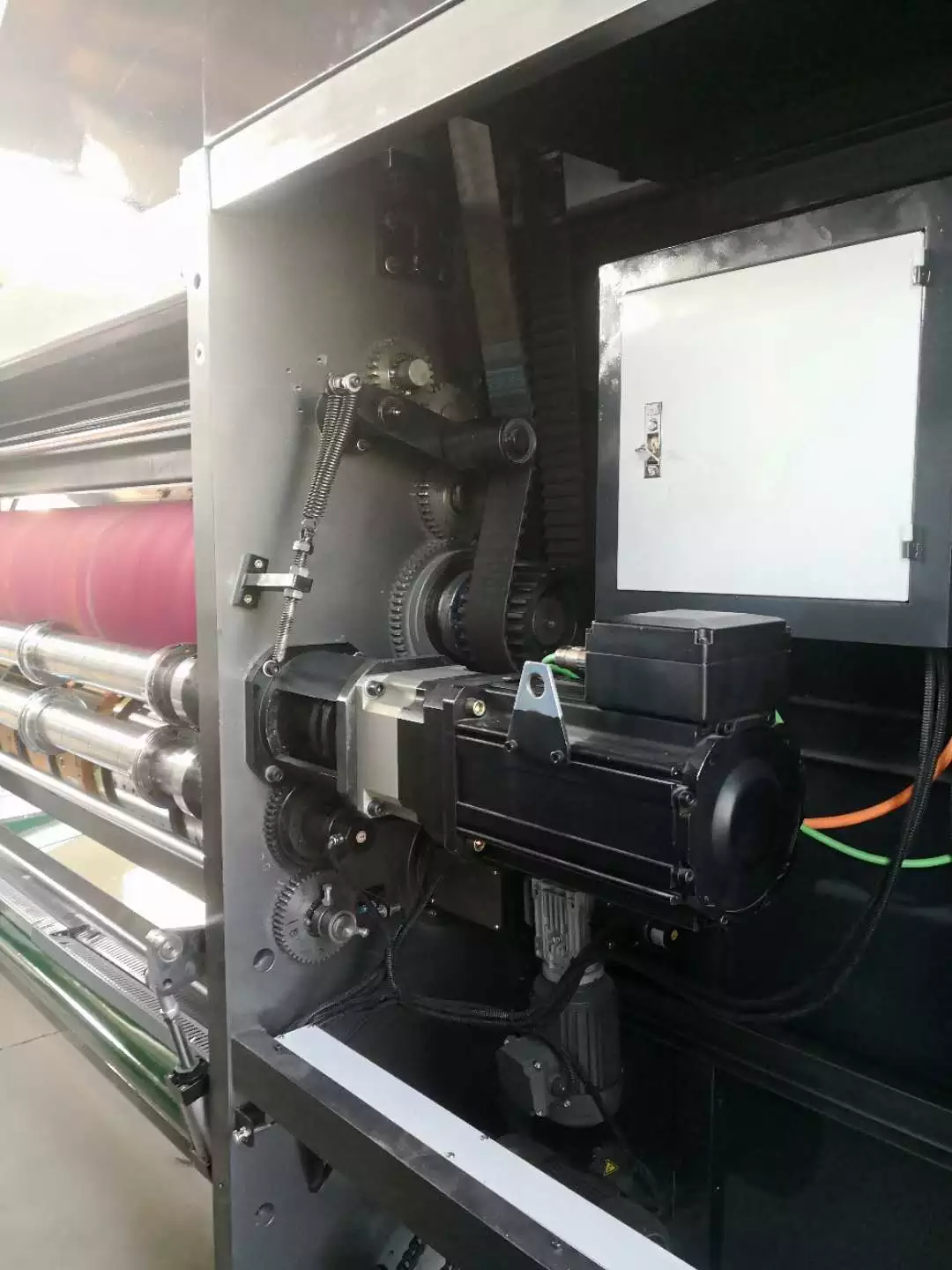

3 pcs servo motor for control the feeding unit, it is higher precision.

Units combined and detached by motor with alarm bell

Friction clutch installed on transmission roller which avoid machine damaged by mis-operation.

There is protect  system for main motor(machine can not working when it is not locked for combination).

Four rollers for feeding, upper two rollers wrapped with rubbers which can keep the flute in good shape, not destroyed .

Dust removal device is installed

Front baffle is adjusted by manual.

Skipping feeding is available.

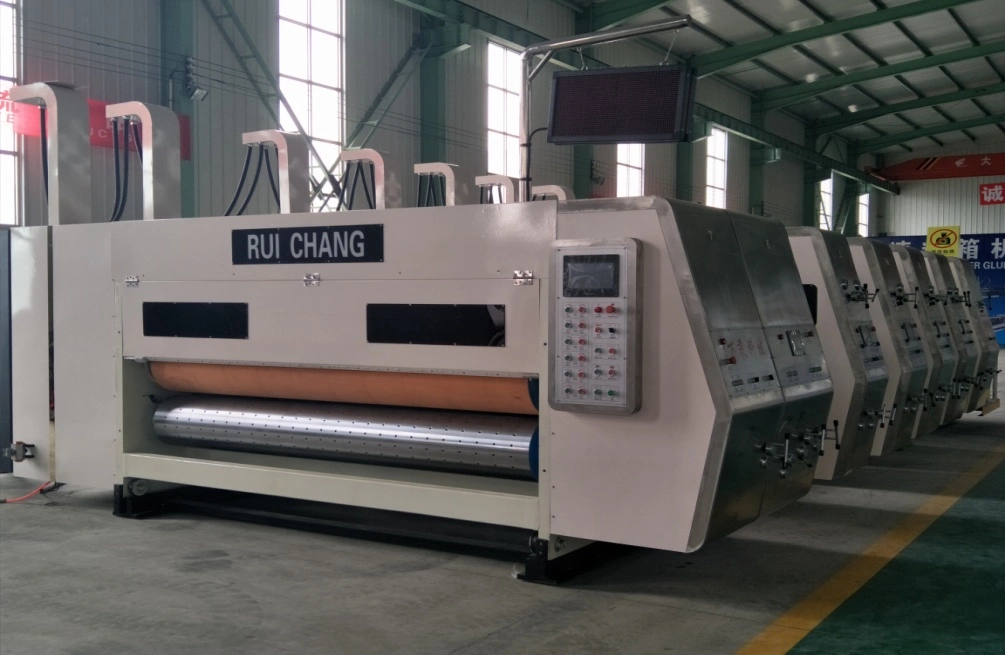

Printing unit

Touch screen operation .

Schneider contactor/ electric

Gear adopt 20CrMnTi material with grinding technology with thickness 60mm

There is groove on the print roller which is used for installing the printing plate with foot switch .

Print rollers, ink roller and embossing rollers all adopt dynamic balance technical for ensure steady transmission.

Print roller can move 15mm by motor operation.

Ink roller lifting automatically coordinate with feeding system. Touch screen/ button adjusted on the side.

Ink automatic cycle.

LPI 250-500 as customer request.

Ceramic roller and chamber doctor blade

Ink roller brand for HaiLi(Jiangsu )

Chamber doctor blade brand for RouKe(Guangzhou )

Automatic water feeding and ink washing

Parameter details:

Printer roller: Steel tube surfacer grinding, hard chromium plating

Balance correction, working stable

Roll diameter 390.6mm

Printer pressure roller: OD175mm, steel tube surfacer grinding, hard chromium plating.

Balance correction, working stable

Ceramic roller: Diameter 213mm

Printing plate:5/7.5mm.

Slotter unit:

Auto zero with order memory function.

Touch screen and button operation .

Schneider contactor/ electric

Gear adopt 20CrMnTi material with grinding technology with thickness 50mm.

5 pairs of blades(10 pcs total) installed two slotting roller with 10 screw rods, easier to adjust carton height without disassemble blades .Avoid collisionss between slotting blades, pre-creasing-creasing and  slot structure. PLC control the carton length, width and height ,memory function is available ,it can save order.

Die cutter unit:

Independent servo motor for die cut unit, it has less interference on print precision.

Auto zero with order memory function.

Touch screen and button operation .

Schneider contactor/ electric

Gear adopt 20CrMnTi material with grinding technology with thickness 60mm.

Die cut roller and anvil roller adopt dynamic balance technical for steady working.

Operator can operate the machine also when he is in the back of machine.

Parameter section:

Die roller: Upper roller diameter is 388.9mm, lower roller diameter is 360mm.

Staker unit

Hydraulic model stacker

Falling prevent device installed

Use steel roll, not plastic model

1.Are you manufacturer ?

Yes, we are a manufacturer with 20 year manufacturing  experience and  we have our own export company.

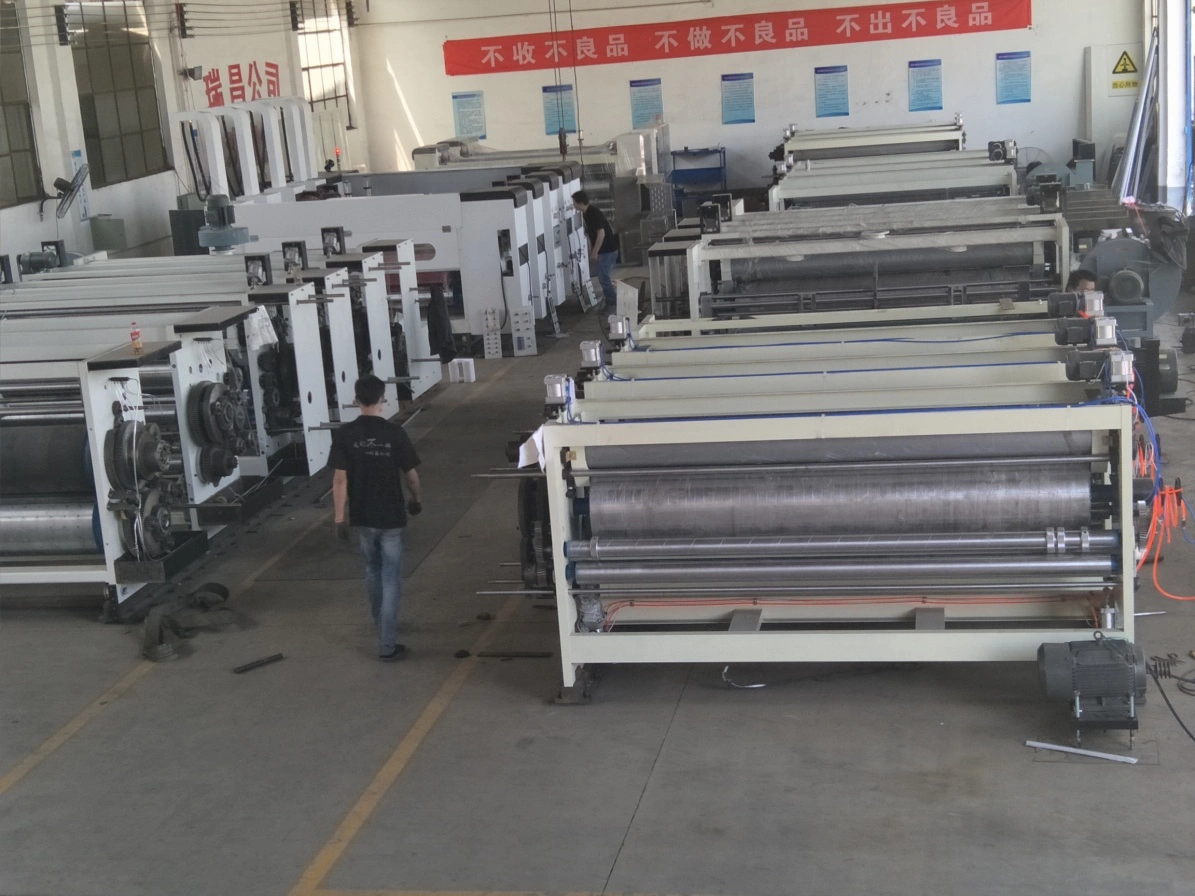

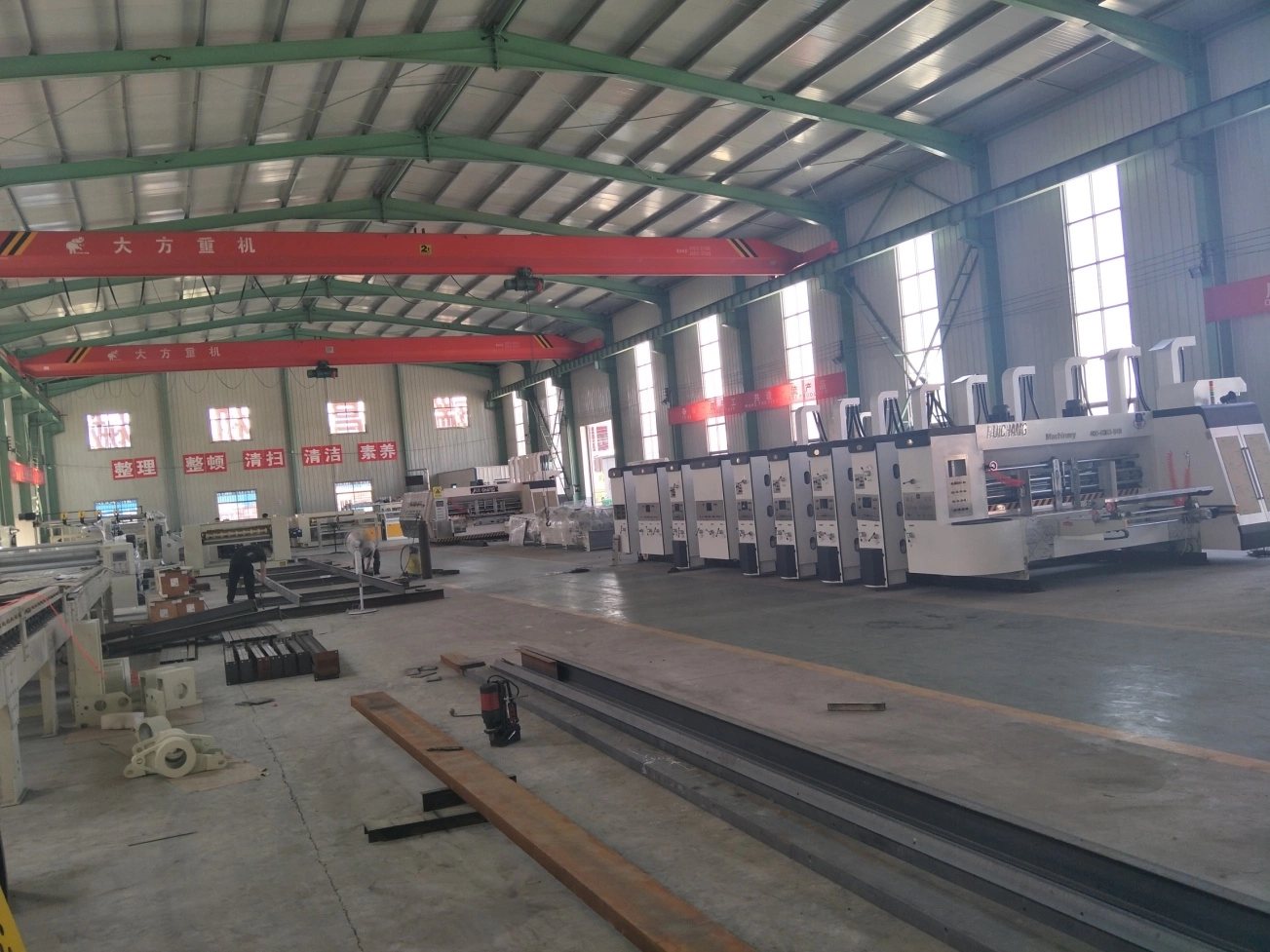

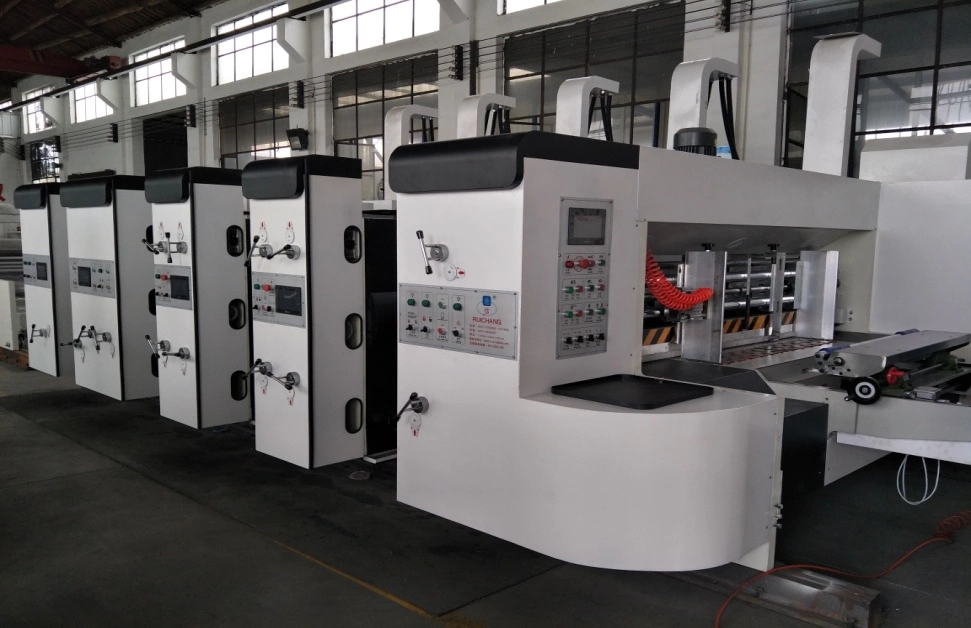

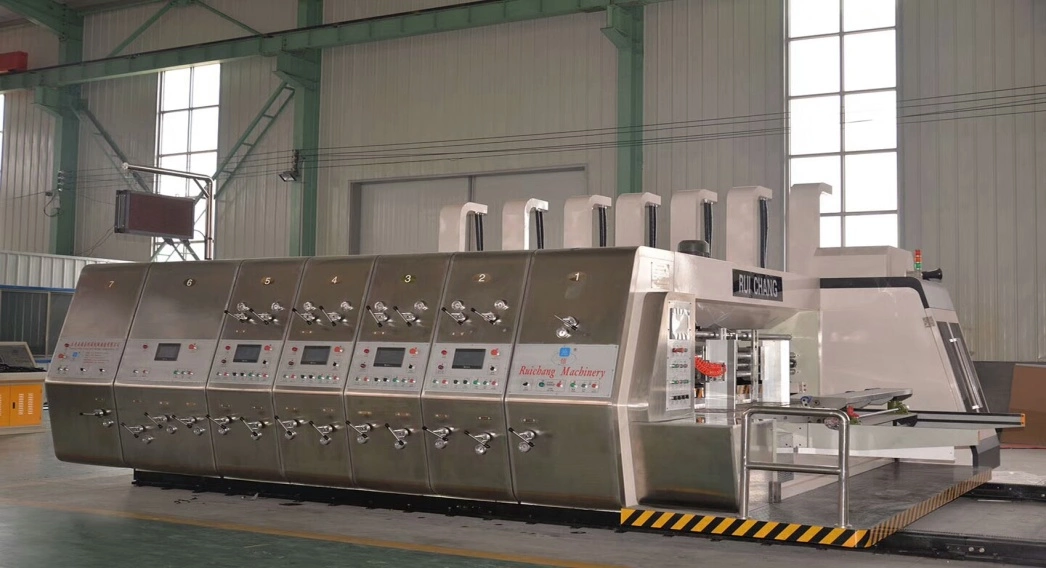

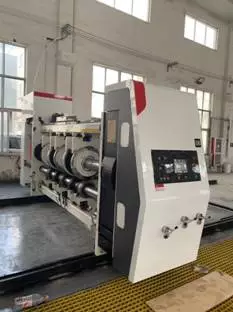

workshop

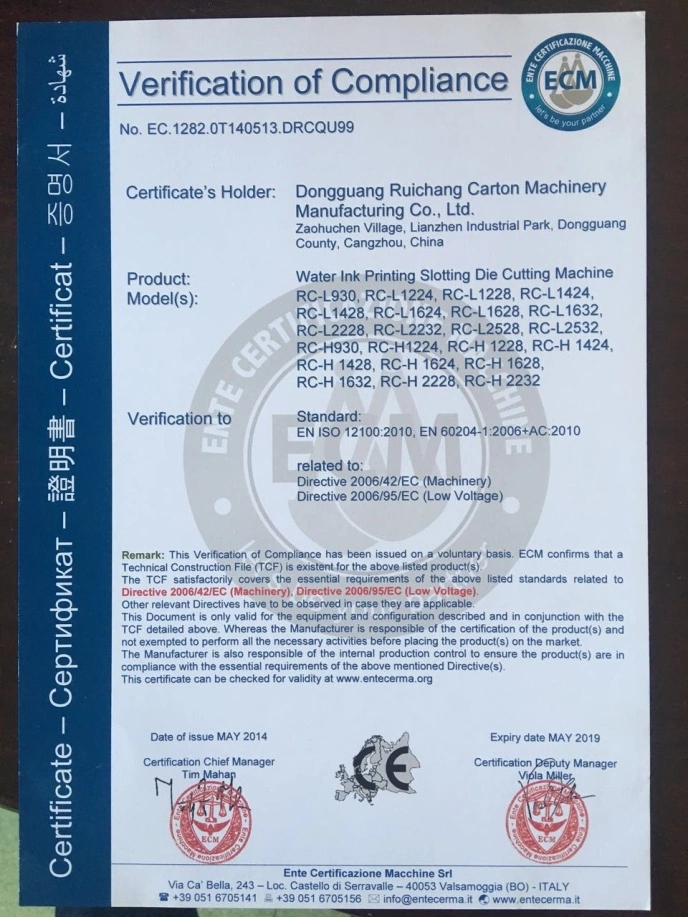

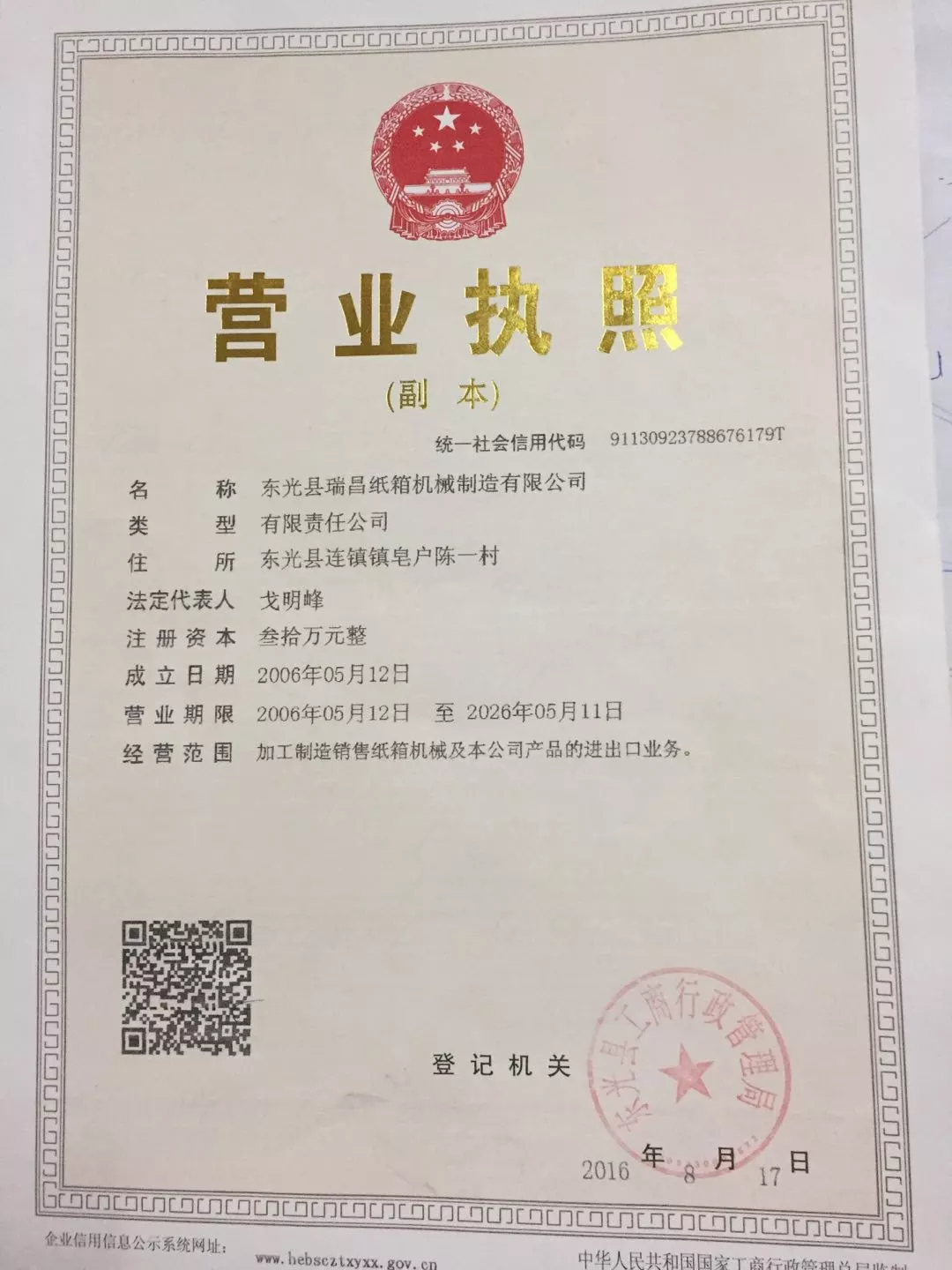

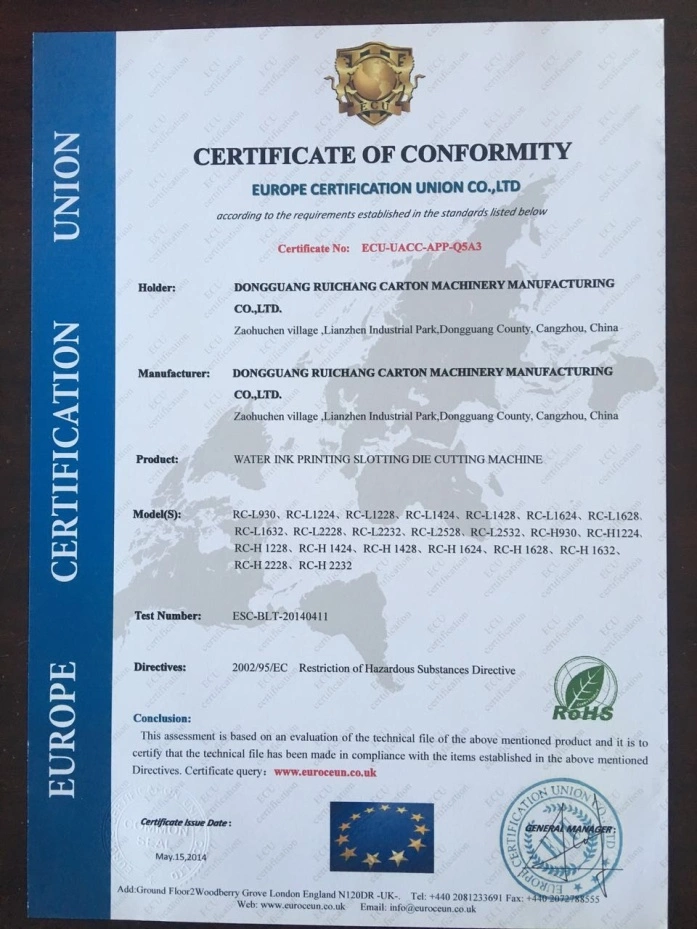

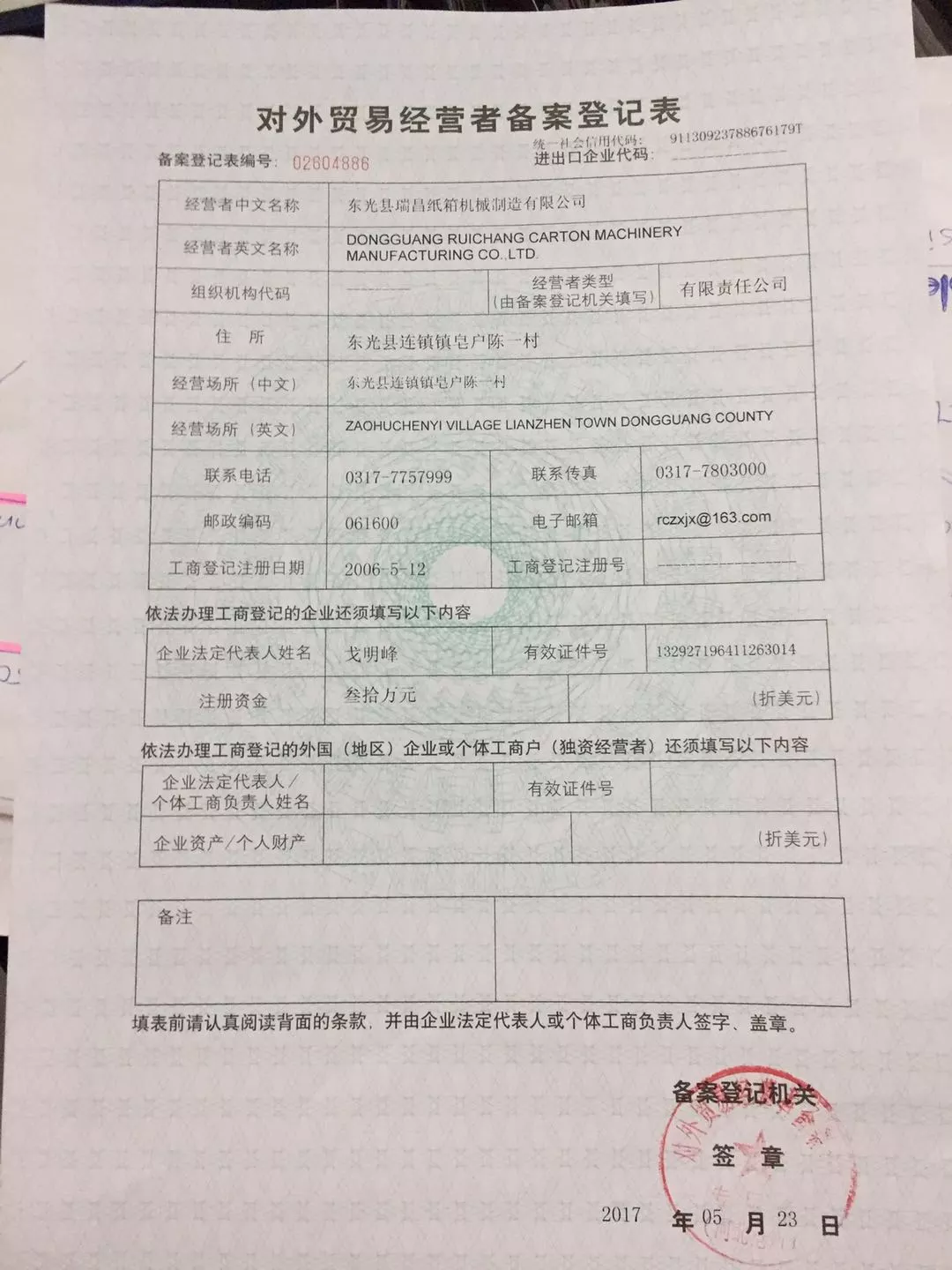

License and certificates

2. What is your product?

We are professional  carton making machinery manufacturer .

3.Do you have experience in packing for sea shipping?

Yes, we will wrap the machine with plastic film ,packed with steel shelf and wooden plate,then fixed in the container.

4. What we should do after we placed the order?

Seller will send a articles list and floor drawing which buyer should prepared in advance .

5.Who will install the machine when machines reached our factory?

We will send professional installer to install the machine and teach the operator how to operate and maintain the machine in customer factory ,it is free within 7 days. Buyer only need to offer return tickets and visa expenses .

6.Do you have local service ?

  Yes, we have. If customer come across the problem with the machine ,he can contact our local staff first.

Seller will go to check the machine situation once-twice in one year.

7 .what we  should do if we need spare parts for replacement ?

We will delivery some frequent spare parts along with order for emergency replacement.

We have comprehensive inventory of spare parts in our factory  to ensure quick availability for the infrequent replacement of parts required, we will delivery the spare parts by DHL when we get the spare parts information from customer side within 24 hours .
