Building structure of Z purlin machine with punching holes

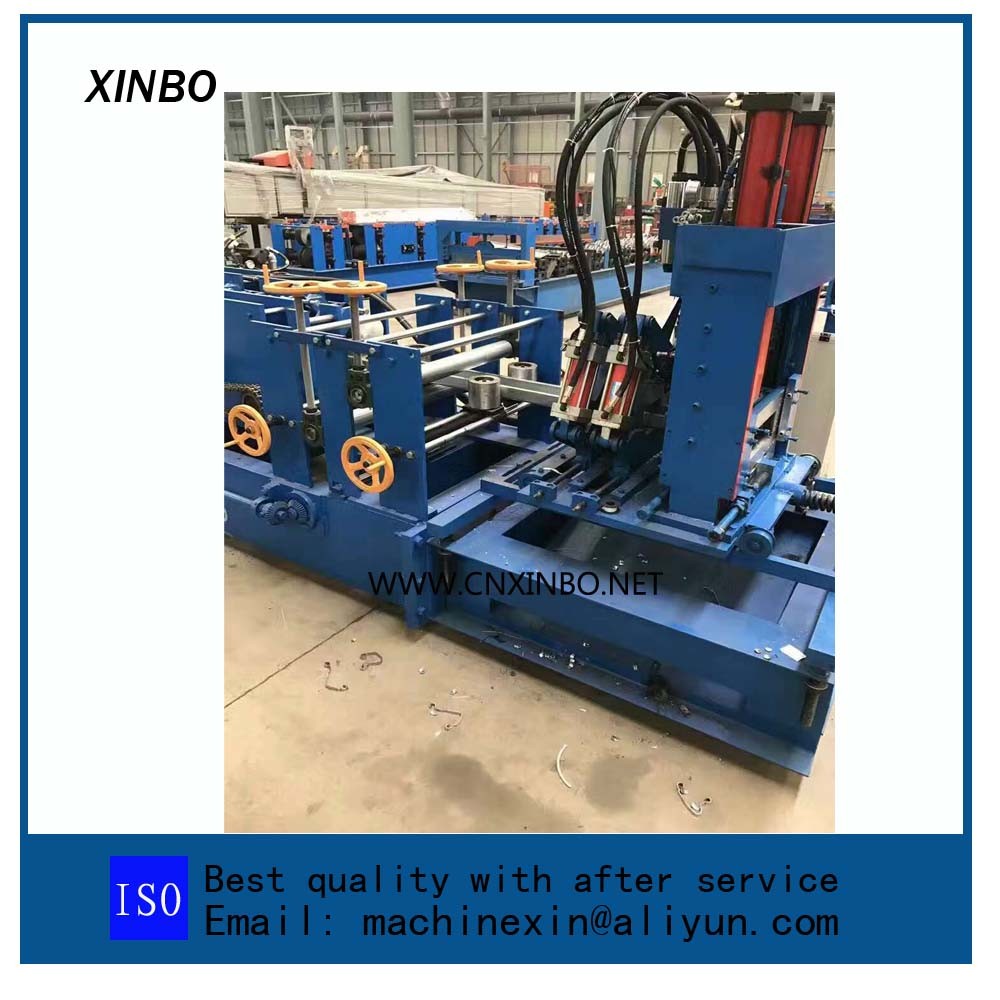

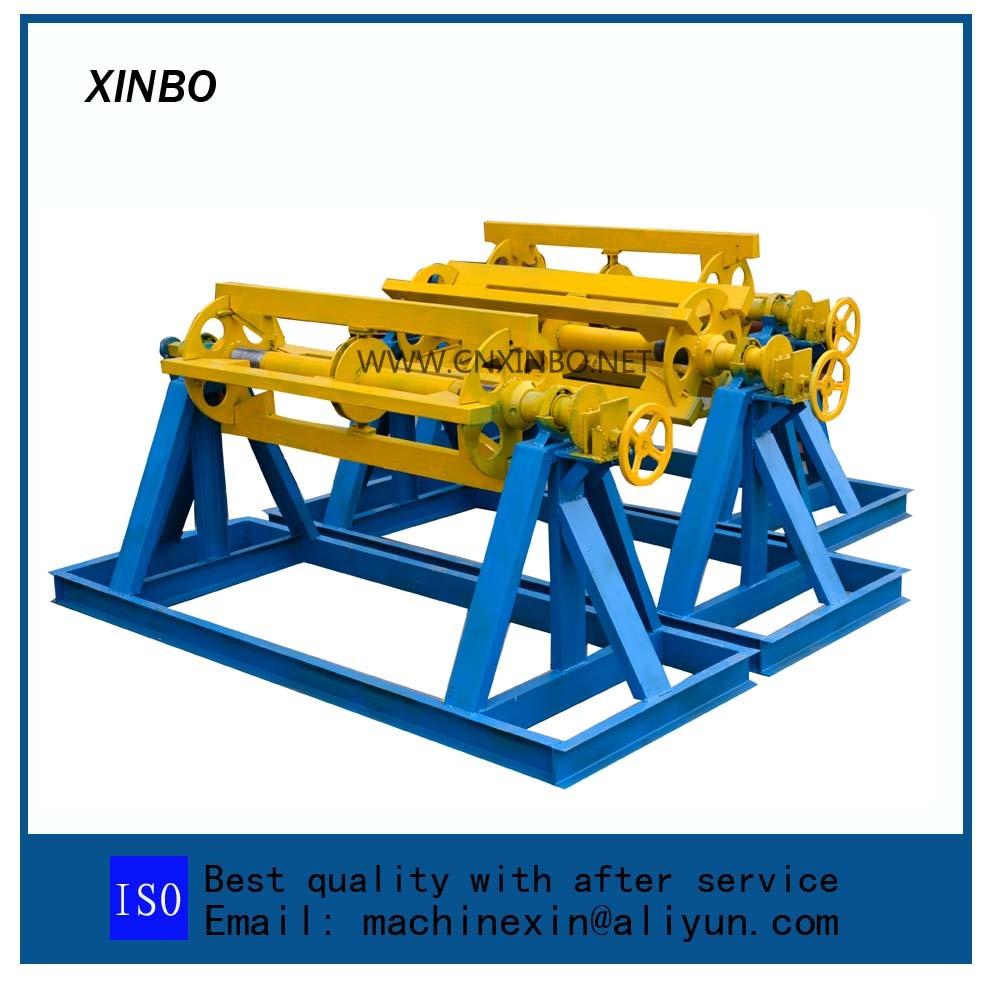

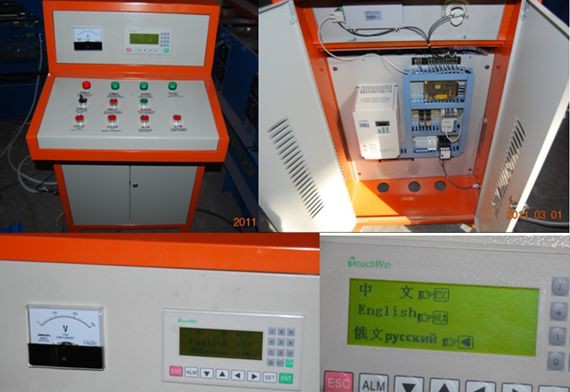

Building structure of Z purlin machine with punching holesProduct ApplicationNow our for building material China manufacture cuz shape steel purlin roll forming machine have been exported to many countries,the most important is that all you need can be customized.Detail parameters1. Processing Material: PPGI,GI 2. Material Width(mm): 12203. Processing Thickness(mm) :0.8—3.04. Material of Rollers: 45# steel,with hard chrome coated5. Diameter of Shaft: 80mm6. Production Speed :8---12m/min7. Cutting Model :Hydraulic Profile Cutting8. Control Style: PLC9. Total Power :15kw10. Operation Model :380V 50HZ or as buyer's request11. The size :7.5-9m Machine PartsName: Cutting SystemAdvanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.Main FeaturesName: Computer Control CabinetIt adopts MITSUBISHI PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.Machine PartsName: Automatic Uncoiler With moving carUsage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by automatic.Loading capacity:5TInner diameter: 450-508mmMain FeaturesName:Hydraulic StationIt is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.Building structure of C purlin machine with punching holesPre-Sales Service* Inquiry and consulting support. * View our Factory.After-Sales Service*  This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians travelling abroad. PackagingSizeas appropriateWeight6-9t   Packaging DetailsBare covered, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.PackagingSizeas appropriateWeight6-9t   Packaging DetailsBare covered, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
