Single facer for cardboard paper plant machine production line

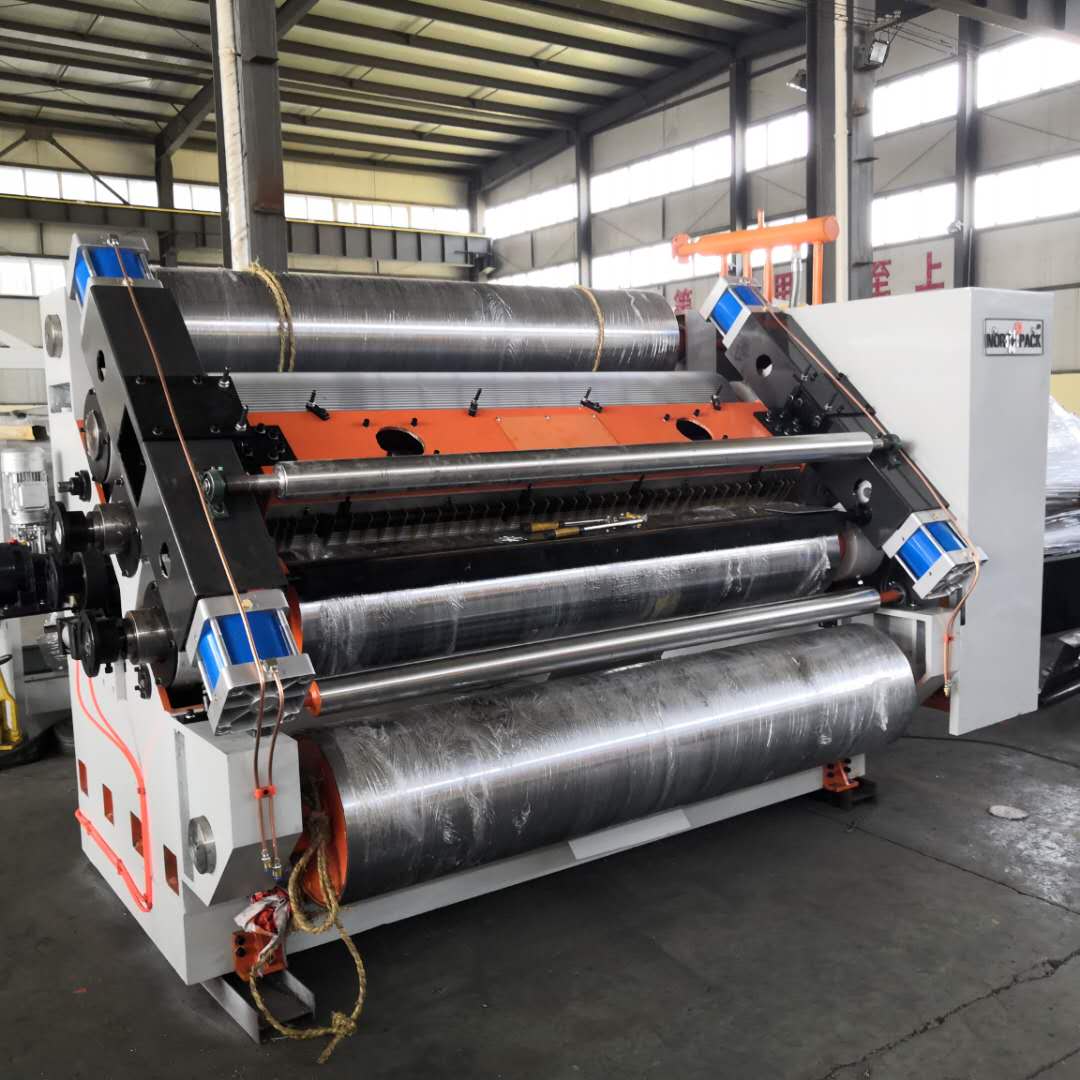

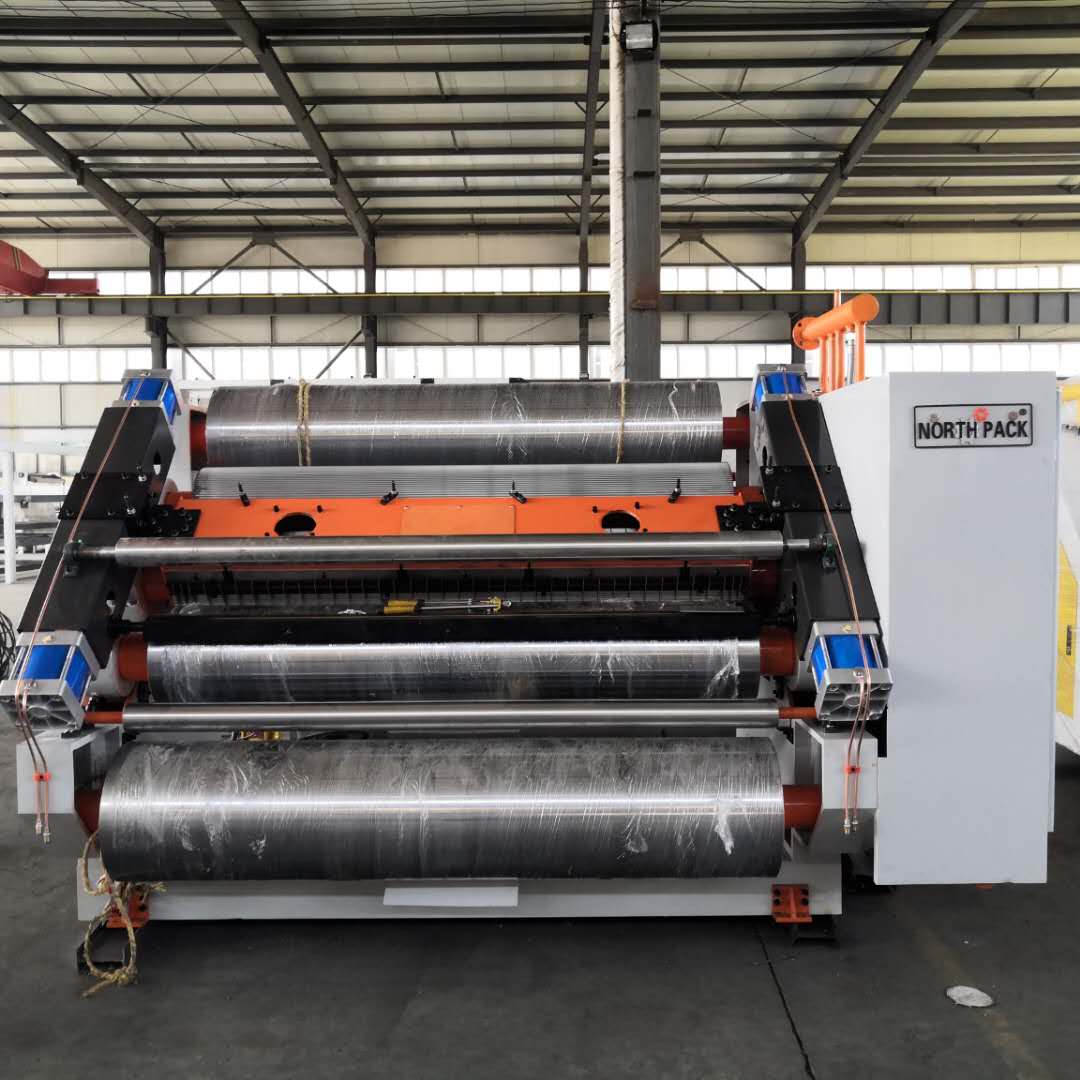

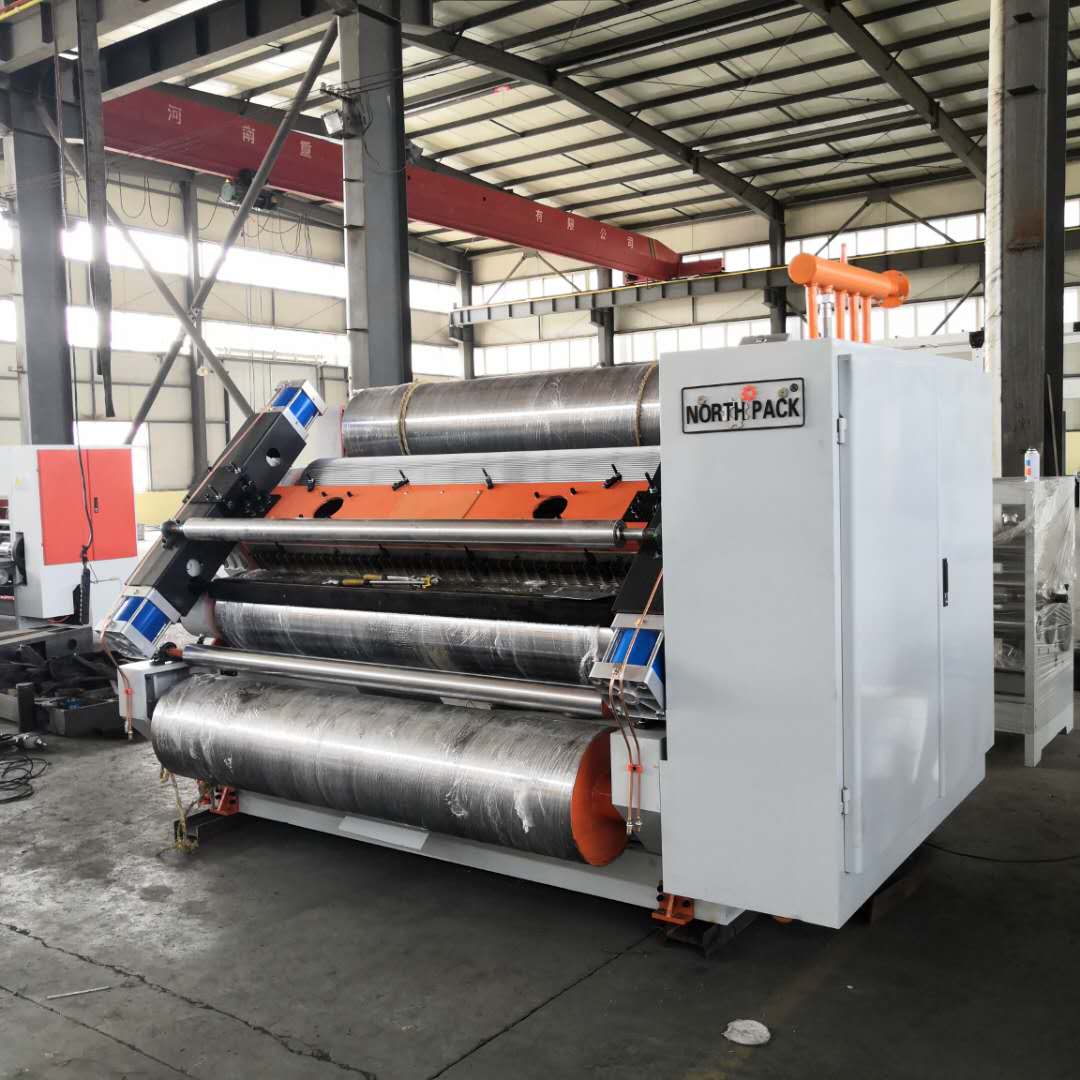

Single facer for cardboard paper plant machine production lineStructural Features:1.Paper feeding: fingerless vacuum suction, with high pressure powerful draught fan,with silencer.2.Engine base and main machine wallplate: iron casting material, thickness of the wall plate, adopt independent   speed changing box, and 3 sets universal joint transmission.3. Diameter of main corrugated roll: ￠280mm, and are made of 48CrMo alloy steel, after hardening and tempering, inner holes fine boring, NC grinding, mid frequency quenching, surface grinding and hard chrome plated, the       rigidity of surface is higher than HRC52.4. Pressure roll diameter: ￠280mm, surface are grinding and plate chrome, cylinder control up-down, raw material is 48CrMo alloy steel, hardening and tempering5. Glue parts: pneumatic control glue supply and glue back, diameter of the applicator glue roll : ￠242mm, surface are treated by polished and chrome plated. Electric adjusting the glue quantity.6.Press roll adopt ￠160 cylinder control adjut the gap with corrugated roll.7.Pre-heater roll adopt seamless steel pipe, Diameter￠402mm, are all connected with rotary joint and metal soft pipe.Technical parameter:1Woking width1600mm2Operation directionleft or right3Design speed100m/min4Temperature scope160-220 C5Pneumatic working pressure0.4-0.9Mpa6Pressure0.8-1.3Mpa7Flute profileUV type or UVV typeParameter of Main roll:1Diameter of corrugated roll￠320mm2Diameter of pressure roller￠320mm3Diameter of applicator glue roll￠242mm4Diameter of preheater roll￠402mmMotor parameter:1Main driving motorpower11kwNormal voltage380V 50HZContinues  (S1)  working system2Wind suction motorNormal voltage380V 50HZContinues  (S1)  working system3Glue adjustment reduction boxpower80kwNormal voltage380V 50HZShort time  (S2)  working system4Glue adjusting gap motorpower0.55KWNormal voltage380V 50HZShort time  (S2)  working system5Glue pump motorpower0.55KWNormal voltage380V 50HZContinues  (S1)  working systemMain bought-in parts and raw material and originNo.Main parts nameOriginRaw material1Wall plate and based wall plateLocalHT2002Rotary joint and metal soft pipeLUGUANQIU, Shangdong3Main driving motorHengshui4BearingHRB, ZWZ, LYC5The shaft with seatHEBEI6High pressure fanHEBEI7CylinderSHANDONG8Magnetic valveZHEJIANG9Drain valveZHEJIANGStainless steel
