1. Technical Parameters
| No. | Parameters | 200W | ||
| 1 | Input Voltage | 100-277V/50/60Hz | 100-277V/50/60Hz | 100-277V/50/60Hz |
| 2 | Power | 200W | 200W | 200W |
| 3 | Driver | MEAN WELL | MEAN WELL | MEAN WELL |
| 4 | LED Type | Cree XTE | Bridgelux | Osram/Lumileds 3030 |
| 5 | LED QTY | 30PCS*4 | 30PCS*4 | 48PCS*4 |
| 6 | Electrical Connection | / | / | / |
| 7 | Drive Current/LED Chip | 125MA | 125MA | 125MA |
| 8 | Luminous Flux(5700K) | 19000lm | 18000lm | 22000lm |
| 9 | Light Efficiency | 95lm/W | 90lm/W | 110lm/W |
| 10 | Color Temp. | 3000-5700K | 3000-5700K | 3000-5700K |
| 11 | CRI | >70 | >70 | >70 |
| 12 | LENS | PC LENS | PC LENS | PC LENS |
| 13 | Beam Angle | 90°/ 135*85° | 90°/ 135*85° | 45°/ 90°/ 135*85° |
| 14 | Driver Efficiency | 92% | 92% | 92% |
| 15 | Power Efficiency | 95% | 95% | 95% |
| 16 | Working Temp. | -25oC-40oC | -25oC-40oC | -25oC-40oC |
| 17 | Screws | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 |
| 18 | Color | White, Black, Grey | White, Black, Grey | White, Black, Grey |
| 19 | Package Size | 810*330*195mm | 810*330*195mm | 810*330*195mm |
| 20 | Gross/ Net Weight | 11.2/10.2kg | 11.2/10.2kg | 11.2/10.2kg |
| 21 | IP Rate | IP65 | IP65 | IP65 |
| 22 | Lifespan L70 | 50000h | 50000h | 50000h |
| 23 | Installation | U-Type Bracket | U-Type Bracket | U-Type Bracket |

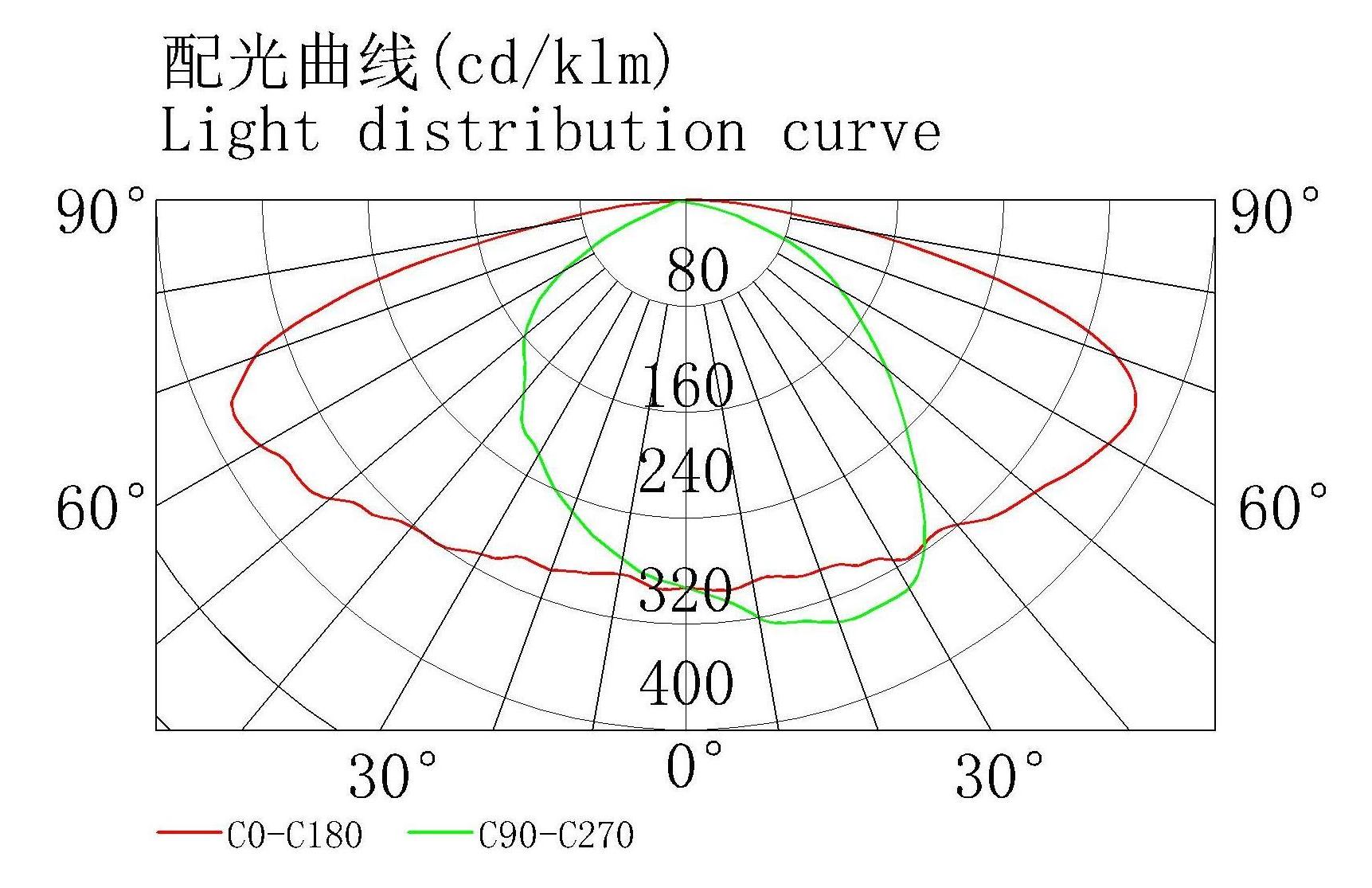

2. Light Distribution Curve (cd/kLM)
135*85°

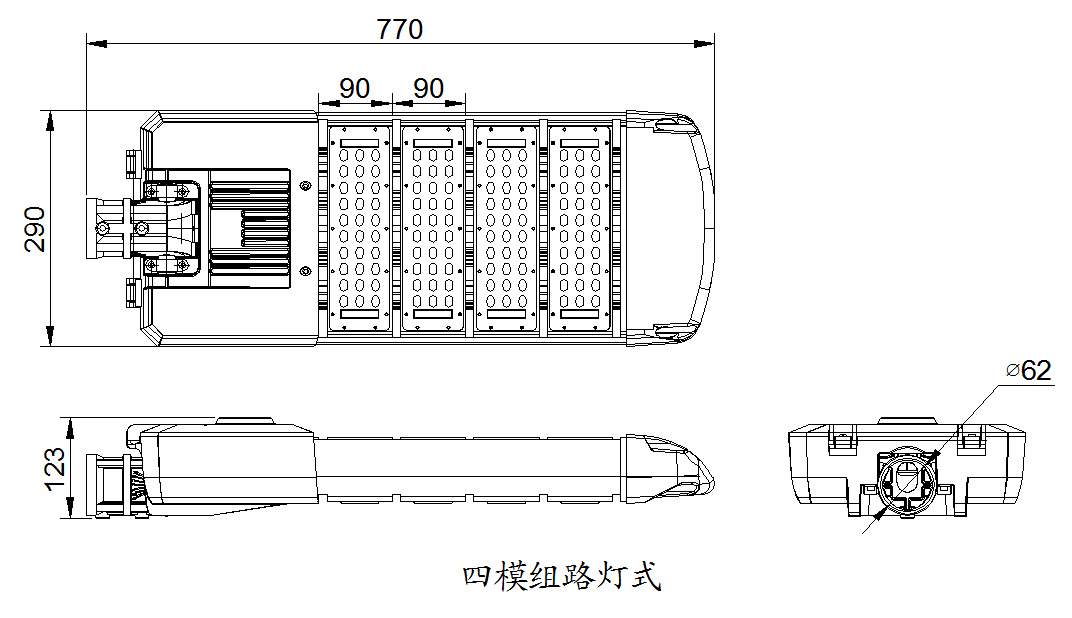

3. Product Dimension

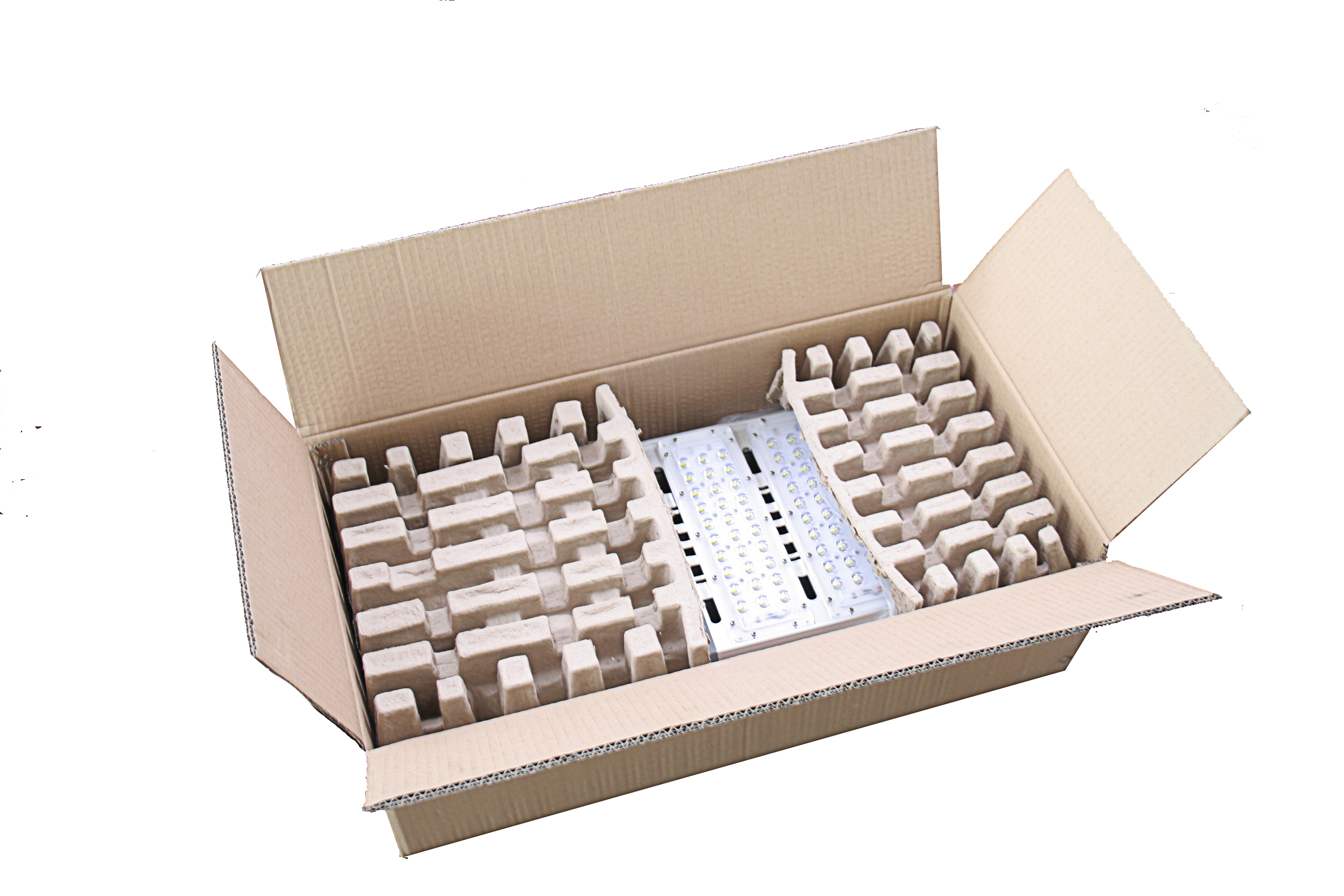

4. Package
5. Product Features
1) The characteristics of LED street light itself - the unidirectional light, no light diffuse, high light efficiency;
2) LED street light has a unique secondary optical design which make the light to the area. Led light further improves the efficiency of the light. It achieves energy-saving purpose;
3) The whole body is made of high-quality PC lens. The lens make the light have good water resistance. It have no need to use glass cover and further improve the efficiency.
4) The light uses imported and high-power LED light source. The inside led driver ensures the stability when lighting.
5) The light has a automatic device to control the luminance. The device achieves energy- saving purpose. It also has a lighting protection device for option.
6) The light has high color rendering index. The color rendering is more real and more lustrous.
7) The led efficiency can meet 160Lm/W at least.
8) Several color temperature for option.
9) IP class:IP65;
10) LED life time:>50000h;
11) Environmental and friendly, excellent UV resistance, no radiation.
12) Safety: using low-voltage constant current source to supply power, have no danger.
