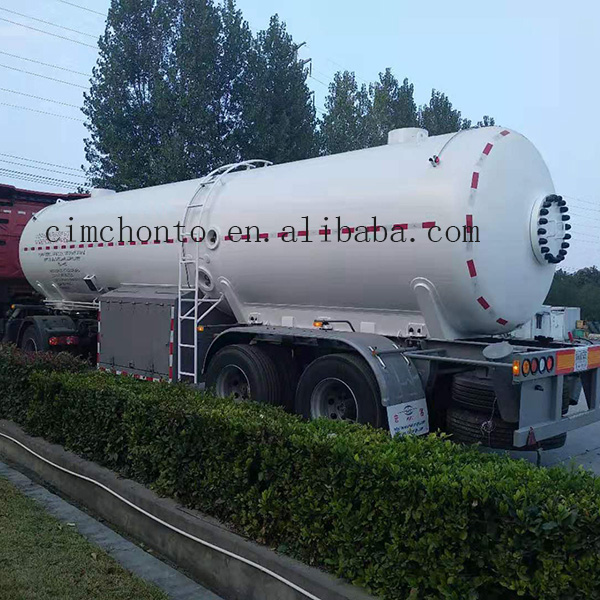

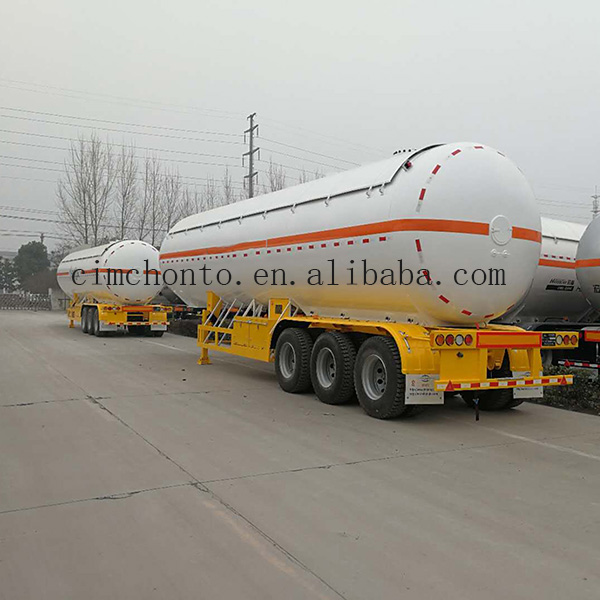

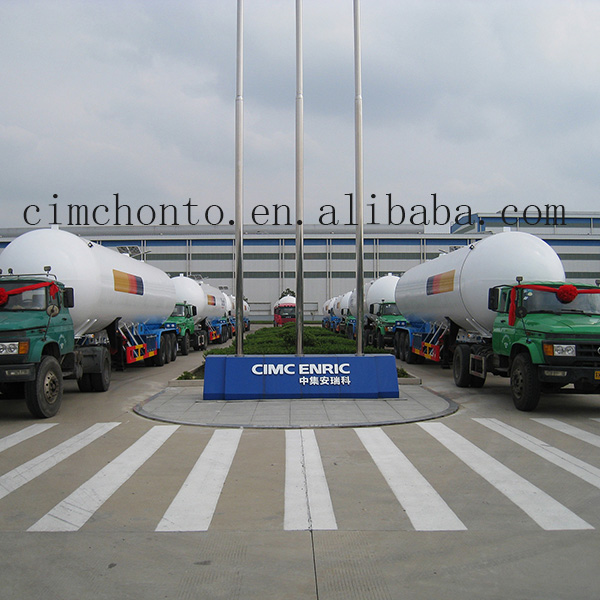

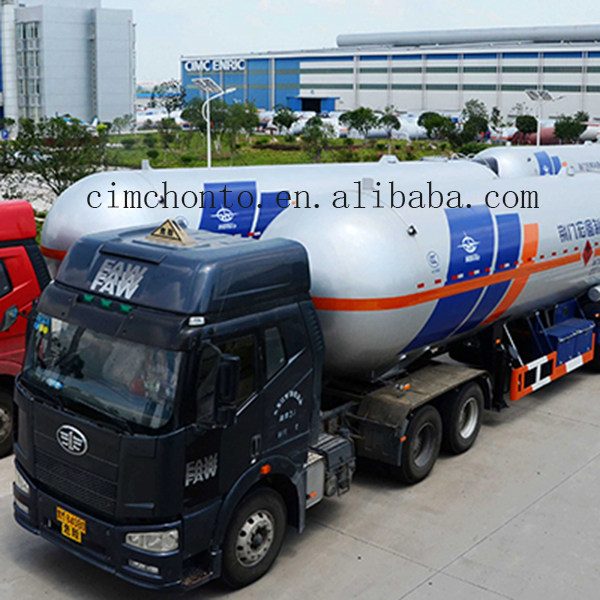

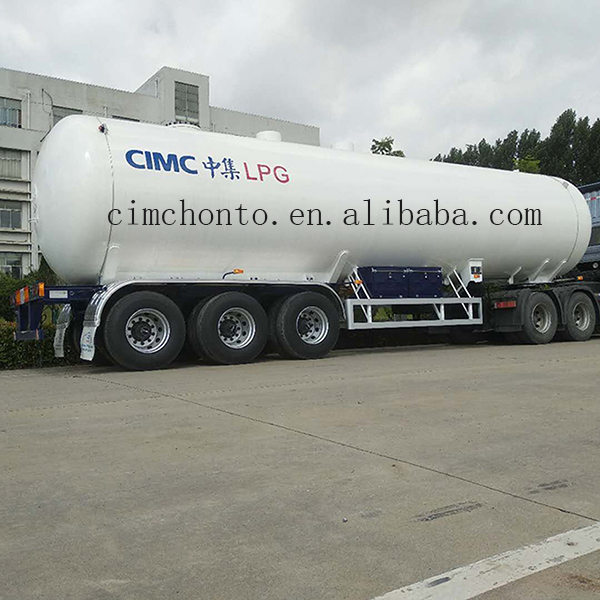

LPG Semi-trailer

. HONGTU has 30-plus years of experience in design and fabrication of LPG semi-trailers. With European and American certificates of pressure vessels, HONGTU can supply various semi-trailers as per Chinese standard, international standards, and tailered design register, etc. HONGTU has cooperated with the international reputed sulliers of valves, instruments and other accessories, such as REGO, FISHER, ROCHESTER, WIKA, CORKEN, BLACKMER, etc. in the long term so as to supply the optional brands of valves, pumps and flow meters etc. as per clients' requirements..Technical speccificationDesign code: ASME BPVC VIII-1/VIII-2. EN 12493, GB/T 19905, JB4732Volume: 30m3~70m3Materials: SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.Tank type: Cylindrical tank, Eccentric cone tank, etc.Vehicle type:ASME codes pressure vessel material plus international brands of valves and safety accessoriesChinese standard pressure vessel material plus Chinese brands of valves and safety accessories.Chinese standard pressure vessel material plus international brands of valves and safety accessoriesNote:The information of CIMC HONTO LPG semi-trailers listed as below are only for recommendations and references. CIMC Hongtu, as the TOP 1 manufacturer of LPG transport tankers in China, can provide customized products according to customers' requirements.I. ASME CodeCapacity38.3m346m3(with pump)**47.5m355m358m360m3(with pump)***Max. Payload18000kg(19.15 t)21300kg(23 t)23000kg(23.75 t)25710kg(27.5 t)26130kg(29 t)25500kg(30 t)Kerb Weight11900kg16900kg14000kg16790kg17300kg22150kgGross Vehicle Weight29900kg38200kg37000kg42500kg43430kg47650kgOutline DimensionL:10470mmW:2550mmH:3920mmL:13152mmW:2500mmH:3850mmL:13137mmW:2500mmH:3850mmL:14297mmW:2500mmH:4000mmL:13238mmW:2640mmH:4050mmL:13052mmW:2550mmH:4000mmDesign Pressure1.724 MPa2.26 MPa1.724MPa1.724MPa1.724MPa2.5MPaMAWP1.724 MPaat 51.7℃2.26 MPa at 70℃1.724MPa-1.724MPa2.5MPaDesign Temperature51.7℃70℃-23.3/51.7℃50℃-23.3/51.7℃-40/+70℃Corrosion Allowance0mm2mm0mm0mm0mm1mmMaterial of ShellSA-612M(N)SA-537MSA-612M(N)SA-612M(N)SA-612M(N)SA-612Material of HeadSA-612M(N)SA-537MSA-612M(N)SA-612M(N)SA-612M(N)SA-612Thickness of Shell12.5mm15mm12mm12.5mm14mm16mmThickness of Head8mm10mm8mm8mm8mm16mmTest Pressure(Hydraulic Horizontal)2.25MPa3.4MPa2.24MPa2.25MPa2.25MPa3.58MPaAir Test Pressure1.724MPa2.26MPa1.724MPa1.724MPa1.724MPa-*Please note that different medium component will cause different density and different payload.** CIMC Hongtu is able to supply you LPG trailer with pump, the reference photos can be viewed hereinafter.***Please contact for more different kinds of capacity and standard tanks.II. China GB StandardVolume36m346m352m358.1m361.9m3*Max. Payload15120kg(18 t)19320kg(23 t)25506kg(26 t)26915kg(29.05 t)26000kg(30.05 t)Kerb Weight11880kg14680kg13374kg15000kg14000kgGross Vehicle Weight27000kg34000kg38800kg41915kg40000kgOutline DimensionL:9400mmW:2500mmH:3900mmL:10360mmW:2500mmH:3990mmL:12000mmW:2500mmH:3990mmL:13150mmW:2500mmH:4100mmL:13590mmW:2550mmH:4000mmDesign Pressure1.61MPa1.61MPa1.77MPa1.72/-0.1MPa1.61/-0.04MPaDesign Temperature-20/50℃-20/50℃-20/50℃-20/50℃-40/50℃Corrosion Allowance1mm1mm1mm1mm1mmMaterial of ShellQ370R(N)Q370R(N)Q420R(WH590D)Q370R(N)WH590E(N)Material of HeadQ370R(N)Q370R(N)Q420R(WH590D)Q370R(N)16MnDR(N)Thickness of Shell12mm13mm11mm12mm10mmThickness of Head11mm12mm10mm8mm8mmTest Pressure(Hydraulic Horizontal)2.1MPa2.1MPa2.7MPa2.24MPa2.1MPaAir Test Pressure1.61MPa1.61MPa1.77MPa1.72MPa1.61MPa*Please note that different medium component will cause different density and different payload.** CIMC Hongtu is able to supply you LPG trailer with pump, the reference photos can be viewed hereinafter.***Please contact for more different kinds of capacity and standard tanks.III. European Standard ADRDesign CodeEN12493:2013+A1:2014Volume60m3Max. Payload25200kgKerb Weight14800kgGross Vehicle Weight40000kgOutline DimensionLengthxWidthxHeight13115x2550x4000 mmWheel Base7900+1320+1320Design Pressure2.1/-0.04 MPaMaxiumum Working Pressure1.62 MPaDesign Temperature-20/+50℃Material of ShellP460NL1Nominal Thickness10(Shell)/13(End) mmHydrostatic Pressure Test2.10 MPa
